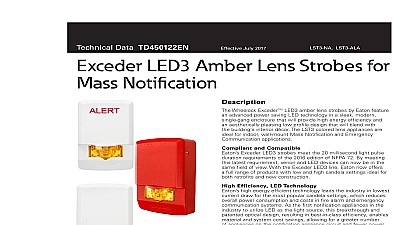

Technical Data TD450125EN LED3 MNS Strobes Wheelock ExcederTM LED3 amber lens strobes by Eaton feature advanced power saving LED technology in a sleek modern enclosure that will provide high energy efficiency and aesthetically pleasing low profile design that will blend with building interior d The LST3 colored lens appliances are for indoor ceiling mount Mass Notification and Emergency applications and Compatible Exceder LED3 strobes meet the 20 millisecond light pulse requirements of the 2016 edition of NFPA 72 By meeting latest requirement xenon and LED devices can now be in the field of view With the Exceder LED3 line Eaton now offers full range of products with low and high candela settings ideal for retrofits and new construction Efficiency LED Technology high energy efficient technology leads the industry in lowest draw for the most popular candela settings which reduces power consumption and costs in fire alarm and emergency systems As the first notification appliances in the to utilize LED as the light source this breakthrough and optical design resulting in best in class efficiency enables and system cost savings allowing for a greater number appliances on the notification appliance circuit and fewer power All strobe models feature a wide range of candela settings 30 75 95 cd on a single appliance Profile Design and Feature Set the industry smallest footprint the Exceder LED3 horns horn and strobes are aesthetically pleasing to building owners the low profile design does not detract from the interior decor will benefit from its comprehensive feature list including current draw single gang design no tools needed for setting and three convenient mounting options for both new and construction These products are suitable for indoor ceiling applications The LSTC3 strobes are for 24V operation and Synchronization Exceder amber lens strobes are listed under UL Standards for fire alarm and signaling and 1971 for light distribution ULC listed under CAN ULC S526 Visible Signal Appliances appliances are Restriction of Hazardous Substances RoHS and contain no mercury or other hazardous substances addition the Wheelock Exceder LED3 product line has been UL listed as compatible with all Fire Alarm Control Panels FACP accessories that have been determined to be compatible with RSS strobe based products including the RSS CH E ET ST HS MT S8 SA STH and Z Series The listing also the ability to install the Exceder LED3 strobes in the same zone and field of view with any Wheelock RSS strobe July 2017 LSTC3 ALA LSTC3 NA firealarmresources com LED3 MNS Strobes 1 Ceiling Horn Strobe Top View 2 Ceiling Horn Strobe Side View Data TD450125EN July 2017 Energy Efficient Patented LED provides industry lowest current draw Fewer power supplies required smaller wire gauge reduced runs Low Profile Design Restriction of Hazardous Substances RoHS One of the smallest most compact ceiling designs Sleek modern aesthetics with no visible mounting screws Amber and clear lens options Special lettering available 4 Field Selectable Settings in 1 Device Select 15 30 75 95 cd No derating required on displayed candela on amber lens devices Easy to Install Finger slide switches No tools needed for setting changes screw terminals using 12 to 18 wires Mounting Options include Exceder LSPKBB C backboxes square 1 1 2 or 2 1 8 and 4 Octagonal 1 or 2 Strobe Synchronization Components Meet synchronizing standards with Wheelock DSM Sync PS Power Supplies or SAFEPATH products Ability to mix xenon and LED strobes in the same field of view Compliance NFPA 72 2016 20 ms flash duration requirements UL 1971 clear UL 1638 amber conforms to UL 1971 light pattern ULC S526 California State Fire Marshal CSFM RoHS FCC Part 15 ICES read these specifications and associated installation instruc before using specifying or installing this product Visit Eaton com for current installation instructions Notes Strobes are designed to flash at 1 flash per second minimum over Voltage Range Note that NFPA 72 specifies a rate of 1 to 2 flashes per second and ADA Guidelines specify flash rate of 1 to 3 flashes per second All candela ratings represent minimum effective Strobe intensity on UL 1971 www eaton comfirealarmresources com Data TD450125EN July 2017 LED3 MNS Strobes 1 Strobe Ratings LED3 Strobes Voltage VDC Max Current a 2 Specification Ordering Information Lens Strobes Lens Strobes LED Backbox LED Backbox Candela w DSM or Power Supplies 5 Specifications Temperature Wire Connections indoor only Connections General voltage Output Rating Flash Rate Models or white textured UV stabilized colored impregnated engineered plastic Exceeds 94V 0 UL flammability rating lbs Emitting Diode LED in a rugged Lexan lens Diameter x 1.5 D 32 to 122 0 to 50 and maximum humidity of 93 applications only Exceder LSPKBB C backboxes or to 4 square 1 1 2 or 2 1 8 Octagonal 1 or 2 through 18 AWG VDC VFWR 8 17.5 VDC VFWR 24 VDC VFWR 16 33 VDC VFWR 12 VDC LHNC3 models only 1971 clear UL 1638 amber conforms to UL 1971 light distribution pattern ULC S526 Selectable 15 30 75 95 output are designed to flash at 1 flash per second can be synchronized with Wheelock DSM Sync Modules Power Supplies or SAFEPATH products using patented sync protocol RMS current ratings are per UL maximum RMS method UL max current rating is the maximum RMS current within the listed voltage range 16 33v for 24v units For the UL max current is usually at the minimum listed voltage 16v for 24v units For audibles the max current is usually at the maximum listed voltage 33v for units For unfiltered FWR ratings see installation instructions Regulated Voltage Range VDC www eaton comfirealarmresources com Data TD450125EN July 2017 and Engineers Specifications LED notification appliances shall be Wheelock Exceder series LSTC3 Visual Strobe appliances for ceiling mount with a low profile design or approved equals The Strobes shall be listed for UL Standard 1638 Visual Signaling for emergency notification and light output shall meet requirements The Series shall be Restriction of Hazardous RoHS compliant and contain no mercury or other substances All Series shall meet the requirements FCC Part 15 and ICES 003 All inputs shall be compatible with reverse polarity supervision of circuit wiring by a Fire Alarm Panel FACP with the ability to operate from 16 to 33 VDC LSTC3 Strobe appliances shall produce a flash rate of one flash per second over the Regulated Voltage Range and shall a Light Emitting Diode LED as the light source with rugged Lexan lens The Series shall be of low current design LED strobe flash duration shall be 20 ms Where Multi Candela are specified the strobe intensity shall have 4 field settings at 15 30 75 95 candela for ceiling mount The selector switch for selecting the candela shall be resistant Appliances with candela settings shall show the selection in a visible location at all times when installed series LSTC3 strobe shall include LED Ceiling backboxes
