Wheelock Exceder wall install sheet wall P85060

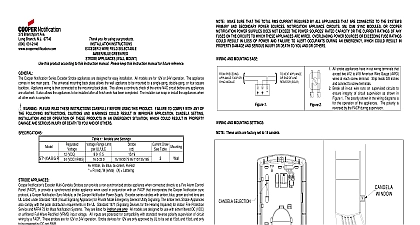

INSTALLATION INSTRUCTIONS 2 WIRE FIELD SELECTABLE HORN AND HORN STROBE APPLIANCES MOUNT this product according to this instruction manual Please keep this instruction manual for future reference Cooper Wheelock Exceder Series HN horn ST strobe and HS horn strobe appliances are designed for easy installation All models are 12V or 24V operation The appliance comes in two main parts The universal mounting back plate allows the wall appliance to be mounted a single gang double gang or four inch square backbox Appliance wiring is then connected to the mounting back plate This allows a check of the entire NAC circuit before any appliances are attached It also allows the appliances to be installed after all finish work been completed The installer can snap or install the appliances when all other work is complete Please read these instructions carefully before using this product Failure to comply with any of the following instructions and warnings could result in improper application candela setting installation and or operation of these products in an situation which could result in property damage and serious injury or death to you and or others 1 Models and Settings Range per UL ULC Voltage VDC VDC VRMS VDC VDC VRMS VDC VRMS VDC VRMS AND HORN STROBE APPLIANCES Draw Table Cooper Wheelock Exceder Multi Candela Strobes can provide a non synchronized strobe appliance when connected directly to a Fire Control Panel FACP or provide a synchronized strobe appliance when used in conjunction with an FACP that incorporates the Wheelock sync protocol Wheelock DSM sync modules Wheelock power supplies or SAFEPATH family of products The Strobe Appliances are Listed under Standard 1971 Signaling Devices for the Hearing Impaired for indoor Fire Protection Service They are listed for indoor use Cooper Notification Exceder Horn Appliances provide a selectable Continuous or Code 3 Horn tone when connected directly to the Fire Control Panel FACP They can also provide a synchronized Code 3 Horn tone when used in conjunction with an FACP that incorporates Wheelock patented sync protocol Wheelock DSM sync modules Wheelock power supplies or SAFEPATH family of products The Horn can be field set for High HI Medium MED or Low LO dBA sound output The Horn Appliances are UL Listed under Standard for Audible Signal Appliances They are listed for indoor use only All models are designed for use with either filtered DC VDC or unfiltered VRMS input voltage All inputs are polarized for compatibility with standard reverse polarity supervision of circuit wiring by a The ST Strobe HS Horn Strobe and the HN Horn are for 12V or 24V operation Strobe devices for 12V are only approved by UL to be set 15cd and 15 75cd and only to be powered by DC not FWR The Code 3 temporal pattern 1 2 second on 1 2 second off 1 2 second on 1 2 second off 1 2 second on 1 1 2 off and repeat is by ANSI and NFPA 72 for standard emergency evacuation signaling The Code 3 Horn should be used only for fire evacuation and not for any other purpose 2A HN and HS dBA Sound Output dBA Per UL 464 at 12V and HS at 24V Horn 3 Horn 3 2B HN and HS dBA Sound Output Per CAN ULC S525 07 at 12V and HS at 24V 2C ULC Directional Characteristics degrees left and right degrees left and right degrees up and down degrees up and down 3A ST Strobe Current Draw Amps Candela Settings cd Volts Volts 4A HS Horn Strobe Current Draw Amps Candela Settings cd Volts 4B HS Horn Strobe Current Draw Amps Candela Settings cd Volts Current Draw is the same for the Continuous Horn and Code 3 Horn Settings Branchport Ave Long Branch N J 07740 800 631 2148 www coopernotification comPN P85060ECopyright 2012 Cooper Wheelock Inc dba Cooper Notificationfirealarmresources com 5 HN Horn Current Draw Amps Volts Volts SELECTION SELECTION A N D E L A W I N D O W Current Draw is the same for the Continuous Horn and Code 3 Horn Settings Candela and Horn Setting will determine the current draw of the product calculating the total currents use Tables 3 5 to determine the highest value of RMS current for an individual appliance then multiply these by the total number of appliances Be sure to add the currents for any other appliances including audible signaling appliances powered by the source and to include any required safety factors The maximum number of strobes on a single notification appliance circuit shall not exceed 50 These notification appliances are UL Listed as They are intended to be used with Fire Alarm Control Panels FACPs whose notification are UL Listed as These appliances shall not be used on UL Listed Application notification circuits unless the appliances are to be compatible in the installation instructions of the FACP or unless the FACP is identified to be compatible in this instruction manual These appliances were tested to the regulated voltage limits of 16.0 33.0 Volts for 24 volt models and 8.0 17.5 Volts for 12 volt models using dc for the 12 volt range and either filtered dc or unfiltered dc for the 24 volt range voltage Do not apply voltage outside of this range OPTIONS Check the minimum and maximum output of the power supply and standby battery and subtract the voltage drop from the circuit wiring to determine the applied voltage to the strobes The maximum wire impedance between strobes shall not exceed 35 ohms Strobes are not designed to be used on coded systems in which the applied voltage is cycled on and off Make sure that the total RMS current required by all appliances that are connected to the system primary and secondary power sources appliance circuits SM DSM sync modules or Cooper Wheelock power supplies does not exceed the power sources rated capacity or the ratings of any fuses on the circuits to which these appliances are wired Overloading power sources or exceeding fuse ratings could result in loss power and failure to alert occupants during an emergency which could result in property damage and serious injury or death to you and or others OUTPUT 4 Candela Selector Candela factory settings are shown in above illustrations Check that the installed product will have sufficient clearance and wiring room prior to installing backboxes and conduit espe if sheathed multiconductor cable or 3 4 conduit fittings are used the limits shown for each mounting option comply with the National Electrical Code NEC Cooper Notification recommends use the largest backbox option shown and the use of approved stranded field wires whenever possible to provide additional wiring room for installation and minimum stress on the product from wiring Do not over tighten mounting screws Excessive torque can distort the base and may affect operation When using power tools to screw down the mounting plate to the electrical backbox ensure the torque is set to the lowest sett
