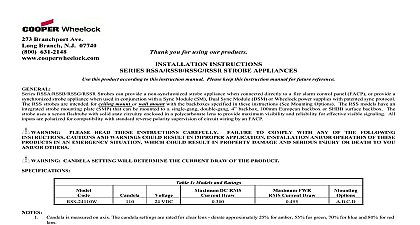

Wheelock RSS red lens strobe install sheet P83884

Branchport Ave Branch N J 07740 631 2148 Thank you for using our products INSTALLATION INSTRUCTIONS RSSR STROBE APPLIANCES this product according to this instruction manual Please keep this instruction manual for future reference Notification Series RSSR Strobes can provide a non synchronized strobe appliance when connected directly to a fire alarm control panel FACP or a synchronized strobe appliance when used in conjunction with a Sync Module SM Dual Sync Module DSM or Cooper Notification PS 12 24 8 Supply with patented sync protocol The RSSR Strobe appliances are UL Listed under Standard 1638 for Emergency Devices The RSSR 2415C RSSR and RSSR 24110C strobes are intended for ceiling mount only and the RSSR 2415W RSSR 2475W and RSSR 24110W strobes are intended for wall only with the backboxes specified in these instructions See Mounting Options The RSSR models have an integrated strobe mounting plate SMP that be mounted to a single gang double gang 4 backbox 100mm European backbox or SHBB surface backbox The strobe uses a xenon flashtube with solid circuitry enclosed in a polycarbonate lens to provide maximum visibility and reliability for effective visible signaling All inputs are polarized for with standard reverse polarity supervision of circuit wiring by an FACP All CAUTIONS and WARNINGS are identified by the symbol All warnings are printed in bold capital letters PLEASE READ THESE INSTRUCTIONS CAREFULLY FAILURE TO COMPLY WITH ANY OF THE FOLLOWING CAUTIONS AND WARNINGS COULD RESULT IN IMPROPER APPLICATION INSTALLATION AND OR OPERATION OF PRODUCTS IN AN EMERGENCY SITUATION WHICH COULD RESULT IN PROPERTY DAMAGE AND SERIOUS INJURY OR TO YOU AND OR OTHERS 1 UL Models and Ratings Candela 15 15 75 75 All models are for indoor use with a temperature range of 32 to 120 0 to 49 and maximum humidity of 85 RH The effect of shipping will produce 1 flash per second over the Voltage range storage temperatures shall not adversely affect the performance of the appliance when it is stored in the original cartons and is not subjected to misuse abuse A1 A2 A3 A4 2 Candela at Various Angles Per UL 1638 15.0cd 15.0cd 75.0cd 75.0cd 15 1.3 1.3 1.2 1.2 0.7 15 1.3 1.3 1.2 1.2 0.7 75 6.7 6.7 6.2 6.2 3.3 75 6.7 6.7 6.2 6.2 3.3 110 9.8 9.8 9.1 9.1 4.8 110 9.8 9.8 9.1 9.1 4.8 A5 A6 A7 calculating the total currents use Table 3 to determine the highest value of RMS current for an individual strobe then multiply these values by the total number of Be sure to add the currents for any other appliances including audible signaling appliances powered by the same source and to include any required safety The maximum number of strobes on a single notification appliance circuit shall not exceed 50 3 UL Current Ratings AMPS RMS Current Draw Voltage 16 33VDC 16 33VRMS These notification appliances are UL Listed as They are intended to be used with FACPs whose notification circuits are UL Listed as These appliances shall not be used on UL Listed Application notification circuits unless the appliances are identified to be compatible in the instructions of the FACP or unless the FACP is identified to be compatible in this instruction manual THESE APPLIANCES WERE TESTED TO THE REGULATED VOLTAGE LIMITS OF 16.0 33.0 VOLTS FOR 24V MODELS USING DC OR UNFILTERED FULL WAVE RECTIFIED VOLTAGE DO NOT APPLY VOLTAGE OUTSIDE OF THIS RANGE 2009 Cooper Wheelock Inc dba Cooper Notification All rights reserved K 1 of 4 CHECK THE MINIMUM AND MAXIMUM OUTPUT OF THE POWER SUPPLY AND STANDBY BATTERY AND SUBTRACT THE DROP FROM THE CIRCUIT WIRING RESISTANCE TO DETERMINE THE APPPLIED VOLTAGE TO THE STROBES THE MAXIMUM IMPEDANCE BETWEEN STROBES SHALL NOT EXCEED 35 OHMS Strobes are not designed to be used on coded systems in which the applied voltage is cycled on and off MAKE SURE THAT THE TOTAL RMS CURRENT REQUIRED BY ALL APPLIANCES THAT ARE CONNECTED TO THE PRIMARY AND SECONDARY POWER SOURCES NOTIFICATION APPLICIANCE CIRCUITS SM DSM SYNC MODULES OR NOTIFICATION POWER SUPPLIES DOES NOT EXCEED THE POWER SOURCES RATED CAPACITY OR THE CURRENT RATINGS OF FUSES ON THE CIRCUITS TO WHICH THESE APPLIANCES ARE WIRED OVERLOADING POWER SOURCES OR EXCEEDING FUSE COULD RESULT IN LOSS OF POWER AND FAILURE TO ALERT OCCUPANTS DURING AN EMERGENCY WHICH COULD RESULT PROPERTY DAMAGE AND SERIOUS INJURY OR DEATH TO YOU AND OR OTHERS AND MOUNTING INFORMATION The following figures A F show the maximum number of field wires conductors that can enter the backbox used with each mounting option If limits are exceeded there may be insufficient space in the backbox to accommodate the field wires and stresses from the wires could damage the product Check that the installed product will have sufficient clearance and wiring room prior to installing backboxes and conduit especially if sheathed cable or 3 4 conduit fittings are used the limits shown for each mounting option comply with the National Electrical Code NEC Cooper Notification recommends use of the largest backbox shown and the use of approved stranded field wires whenever possible to provide additional wiring room for easy installation and minimum stress on the from wiring MOUNTING STD SINGLE GANG BACKBOX 2 DEEP 6 32 SCREWS OR SURFACE MOUNT 4 SQ X 1 1 2 DEEP BACKBOX OR 100mm X 37.5mm EUROPEAN BACKBOX STROBE MOUNTING PLATE 8 32 SCREWS MOUNTING PLATE NUMBER OF CONDUCTORS 18 AWG 16 AWG 14 AWG 12 4 4 4 OR SURFACE MOUNT DOUBLE GANG X 2 1 4 DEEP BACKBOX 6 32 SCREWS PLATE NUMBER OF CONDUCTORS 18 AWG 16 AWG 14 AWG 12 4 4 4 MOUNTING SURFACE SHBB MOUNTING SCREWS MOUNTING PLATE NUMBER OF CONDUCTORS 18 AWG 16 AWG 14 AWG 12 4 4 4 4 PLATE NUMBER OF CONDUCTORS 18 AWG 16 AWG 14 AWG 12 4 4 4 K 2 of 4 1 Wiring Diagrams PRECEDING FACP SYNC MODULE NEXT SIGNAL END OF LINE EOLR VISIBLE VISIBLE VISIBLE UNISON PRECEDING FACP SYNC MODULE TO NEXT APPLIANCE OR EOLR VISIBLE PRECEDING FACP SYNC MODULE PRECEDING FACP SYNC MODULE TO NEXT APPLIANCE OR EOLR TO NEXT APPLIANCE OR EOLR 2 All strobe appliances have in out wiring terminals that accepts two 12 to American Wire Gauge AWG wires at each screw terminal Strip 3 8 inches and connect to screw terminals Break all in out wire runs on supervised circuits to assure integrity of supervision as shown in Figure 2 Strobe Plate assembly has two leads and two black leads for in out wiring The polarity shown in the diagrams is for the operation of the appliances The polarity is by th
