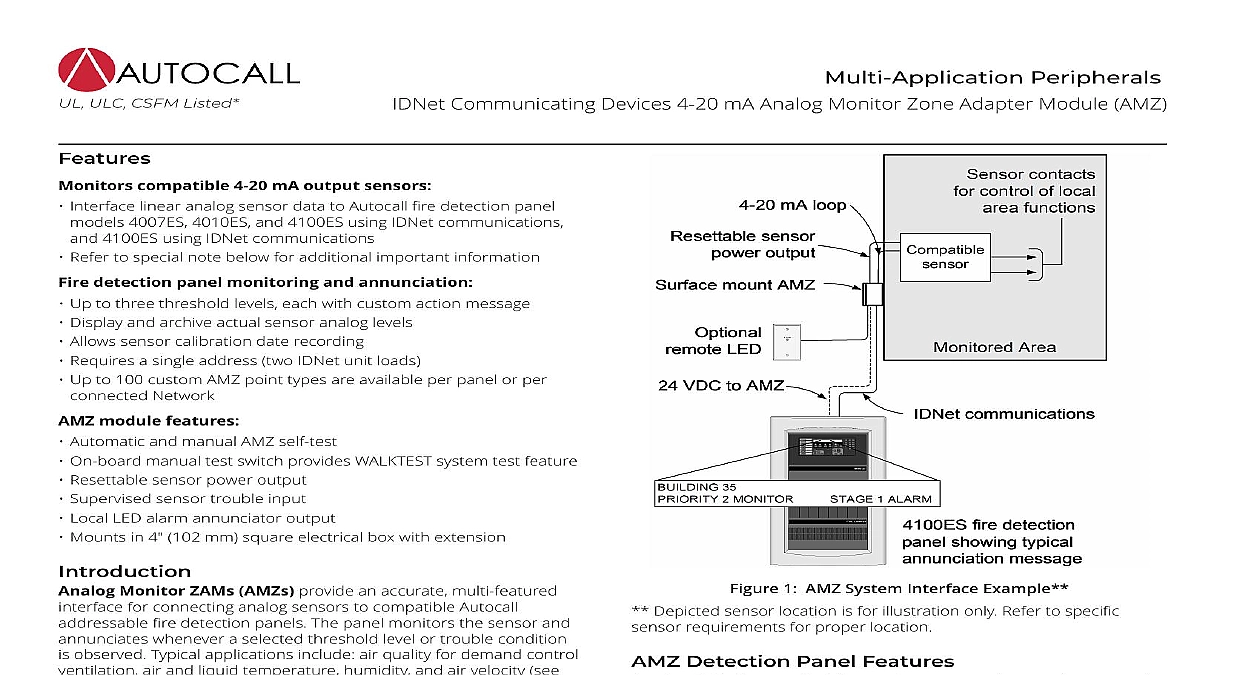

Autocall IDNet Communicating Devices 4-20 mA Analog Monitor Zone Adapter Module (AMZ)

UL ULC CSFM Listed Peripherals Communicating Devices 4 20 mA Analog Monitor Zone Adapter Module AMZ compatible 4 20 mA output sensors Interface linear analog sensor data to Autocall fire detection panel 4007ES 4010ES and 4100ES using IDNet communications 4100ES using IDNet communications Refer to special note below for additional important information detection panel monitoring and annunciation Up to three threshold levels each with custom action message Display and archive actual sensor analog levels Allows sensor calibration date recording Requires a single address two IDNet unit loads Up to 100 custom AMZ point types are available per panel or per Network module features Automatic and manual AMZ self test On board manual test switch provides WALKTEST system test feature Resettable sensor power output Supervised sensor trouble input Local LED alarm annunciator output Mounts in 4 102 mm square electrical box with extension Monitor ZAMs AMZs provide an accurate multi featured for connecting analog sensors to compatible Autocall fire detection panels The panel monitors the sensor and whenever a selected threshold level or trouble condition observed Typical applications include air quality for demand control air and liquid temperature humidity and air velocity see 3 sensors are typically supplied by non Autocall manufactur and or distributors Autocall DISCLAIMS ALL EXPRESS WARRANTIES IS IT RESPONSIBLE FOR ANY SERVICE TESTING AND OR INSPEC OF THE COMPATIBLE SENSORS Autocall DISCLAIMS ANY IMPLIED OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR REGARDING THE COMPATIBLE SENSORS Application Considerations The purpose of the AMZ is to communicate the status of a 4 20 mA sensor to the Autocall fire detection panel proper fire alarm system response including annunciation and logging Responses required to be initiated by the sensor for fire life safety actions are to be initiated by sensor output refer to Additional Application Reference Autocall does not assume responsibility for the application inspection warranty calibration or testing of the analog AMZs and the connected panel are to be located outside of the area and installed in accordance with applicable local requirements The AMZ accommodates 2 wire 3 wire or 4 wire connections to a sensor 1 System Interface Example Depicted sensor location is for illustration only Refer to specific requirements for proper location Detection Panel Features Data Access Real time analog sensor values can be accessed the front panel interface Data is formatted in the specific units measured Sensor Programming AMZ point types can be designated Priority 2 Supervisory Trouble Latched Supervisory or Utility each custom label For Fire and Life Safety monitoring connect to sensor contacts refer to Additional Application Reference Communications By default the AMZ provides an output trouble if the monitored sensor produces an output below mA or above 20.0 mA Programmable Threshold Levels Each AMZ can have up to separate threshold levels each with a custom action message AMZ Point Types Up to 100 custom AMZ point types can programmed into a single fire alarm detection panel For Network the Network total custom AMZ point type limit is also 100 Custom point types would be required for the same sensor but with different threshold values or for different sensors with characteristics Date Recording Each sensor calibration date can be entered for secured record keeping Exporting Sensor activity pertaining to the three analog alarm levels can be exported for archiving via the Autocall Network a TrueSite Workstation or TrueSite Incident Commander This product has been approved by the California State Fire Marshal CSFM pursuant to Section 13144.1 of the California Health and Safety Code See CSFM Listings 7300 2269 0505 7300 2269 0551 and 7300 2269 0552 for allowable values and or conditions concerning material presented in this document Additional listings may be applicable contact your local supplier for the latest status Rev 10 1 2020 Communicating Devices 4 20 mA Analog Monitor Zone Adapter Module AMZ Sensor Operation sensors provide a linear output current varying between 4.0 mA and 20.0 mA that represents the present analog measurement as by the specific sensor The AMZ monitors the 4 20 mA loop connection and digitally communicates the sensor measurement to the With this information the panel can determine whether a status annunciation is required and can display the sensor analog level directly in the units of measurement 4 to 20 mA loop is an established analog format that is highly reliable and inherently supervised for loop integrity For additional monitoring with dry trouble contacts can be directly connected to the AMZ supervised trouble input circuit Product Selection Chart 1 AMZ Product Selection Type mount AMZ package with cover mounts in 4 102 mm square box extension see AMZ Remote Location Mounting Information Coded Wire Leads 18 AWG mm2 LED indicator 2 Options gang stainless steel plate AWG Leads Product Listings Compatibility Chart SKU Listing for use with Safety Appliances Co MSA model Chillgard RT Refrigerant Monitor 3 Listings compatibility Listing for use with compatible 4 20 mA sensors Specifications Voltage Output Current 3 or 4 wire devices AMZ Current Loop Current Circuit Output Current LED Annunciator Trouble Input Sensor Loop and Power Communications distance AMZ to sensor Range Range Instructions Current Requirements Operation Loop 20 mA maximum Power 400 mA maximum LED 3 mA in alarm 5 mA with trouble contact closed 4 Voltage and Current Specifications VDC 24 VDC nominal input voltage mA maximum mA mA minimum operation below 4.0 mA is a trouble condition mA maximum operation above 20.0 mA is a trouble condition mA for monitoring of dry trouble contacts voltage supplied by the AMZ mA 5 General Specifications contact 29 VDC maximum AWG twisted pair or per sensor requirements IDNet address per AMZ two IDNet unit loads to 100 custom AMZ point types per panel to 100 custom AMZ point types total per Network ft 1 km indoor locations 32 F to 120 F 0 C to 49 C to 90 RH mA mA mA Total mA mA mA mA 2 Rev 10 1 2020 Communicating Devices 4 20 mA Analog Monitor Zone Adapter Module AMZ Do not exceed 450 mA max Remote Location Mounting Information additional information refer to Installation Instructions 574 704AC Surface mount SKU A190 9050 and Flush mount SKU A190 9051 3 Rev 10 1 2020 Application Reference Communicating Devices 4 20 mA Analog Monitor Zone Adapter Module AMZ Point Module SKU A4090 9120 and IAM SKU A4090 9002 Fire detection panel models 4007ES 4010ES or 4100ES 2020 Johnson Controls All rights reserved All specifications and other information shown were current as of document revision and are subject to change without notice listings may be applicable contact your local Autocall product supplier for the latest status Listings and approvals under Tyco Fire Security GmbH and the names listed in this material are marks and or registered marks Unauthorized use is strictly prohibited NFPA 72 and National Fire Alarm Code are registered of the National Fire Protection Association NFPA Rev 10 1 2020
