Fike Bells P 1 09 01

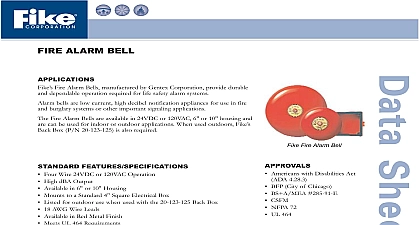

BELLS 20 111 and Engineer Specification and Engineer Specification UL Listed for Fire Protective Service High sould output with low current draw Low frequency aluminum shells for better audibility walls foors and other structures Both 6 and 10 shell sized for 24 VDC model Integral RFI suppression to minimize induced noise on Built in trimplate makes semi flush mounting simpler and Screw terminals permit fast in out field wiring of 12 to 18 alarm lines expensive wire Polarized for DC supervision of alarm lines Operate on filtered or unfiltered DC Mount to a Standard 4 square backbox motor bells provide a better engineered motor bell fire and life safety alarm systems A number of have been built into the bell line including dBA low current draw built in trimplate for semi mounting low frequency aluminum shells and low noise The motor is a durable high torque perma magnet motor selected for its high performance and life Information Built in trim plate eliminates need for SFP plate Typical dBA at 10 Ft is measured in an anechoic chamber 24 VDC models are U L rated for 18.0 to 31.0 VDC All DC models can be used with filtered and unfiltered full wave voltage S 10th Street P O Box 610 Blue Springs Missouri 64013 0610 U S A 816 229 3405 Fax 816 229 0314 www fike com 2002 Issue Diagram or next or E O L and Engineers Specifications alarm signals shall be Fike vibrating Motor Bells or equal They shall be UL Listed for Fire Protec Service Shells shall be aluminum in 6 or 10 diam Sound output at 10 feet shall be 92 dBA The bells incorporate a permanent magnet motor and suppres to minimize RFI They shall include a built in trimplate semi flush mounting to standard 4 square backboxes surface mounting backbox products must be used within their published specifi and must be PROPERLY specificed applied in operated maintained and operationally tested in with their installation instructions at the time of and at least twice a year or more often and in with local state and federal codes regula and laws Specifications application installation op maintenance and testing must be performed by personnel for proper operation in accordance with of the latest National Fire Protection Association NFPA Laboratories UL National Electric Code Occupational Safety and Health Administration local state county province district federal and applicable building and fire standards guidelines laws and codes including but not limited to appendices and amendments and the requirements of local authority having jurisdiction AHJ Fike Corporation All rights reserved No previously 1104 are subject change without notice
