Fike P 1 50 01 Ceiling Mount Series Strobes and Horn Strobes

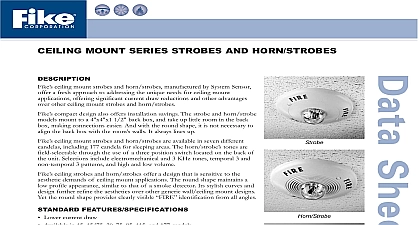

CEILING MOUNT SERIES STROBES AND HORN STROBES ceiling mount strobes and horn strobes manufactured by System Sensor a fresh approach to addressing the unique needs for ceiling mount offering significant current draw reductions and other advantages other ceiling mount strobes and horn strobes compact design also offers installation savings The strobe and horn strobe mount to a 4 x4 x1 1 2 back box and take up little room in the back making connections easier And with the round shape it is not necessary to the back box with the room walls It always lines up ceiling mount strobes and horn strobes are available in seven different including 177 candela for sleeping areas The horn strobe tones are through the use of a three position switch located on the back of unit Selections include electromechanical and 3 KHz tones temporal 3 and 3 patterns and high and low volume ceiling strobes and horn strobes offer a design that is sensitive to the demands of ceiling mount applications The round shape maintains a profile appearance similar to that of a smoke detector Its stylish curves and further refine the aesthetics over other generic wall ceiling mount designs the round shape provides clearly visible identification from all angles FEATURES SPECIFICATIONS Lower current draw Available in 15 15 75 30 75 95 115 and 177 candela Horn strobe models include a three position switch for field selecting horn tones Electromechanical 3KHz Temporal 3 Non temporal 3 High Low dBA output Ceiling specific shape profile and aesthetics Synchronizable with MDL Sync module Mounts to 4 x4 x1 1 2 back box Round shape offers greater placement flexibility Operating Voltage 24 VDC and FWR unfiltered Input Terminals 12 to 18 AWG Operating Voltage Range 24V 16 V 177cd models tested at 20 V and 16 VDC Operating Voltage Range w Sync Module 24V 17 V 177cd tested at 21 V FWR and 17 VDC Dimensions 6.8 diameter Mounting 4 x 1 1 2 back box Indoor Operating Temperature 32 to 120 F 0 to 49 Max Humidity 95 as tested per UL464 Weight 5.3 oz 150 grams U S Patent Numbers 6,049,446 6,057,778 and D424,465 All strobes were only tested at the 16 33 Volt FWR DC limits This does not the 80 low end or 110 high end voltage limits Mounting Plate CSFM 7125 1209 201 7135 FM Approved MEA Approved UL S5512 S4011 S 10th Street P O Box 610 Blue Springs Missouri 64013 0610 U S A 816 229 3405 816 229 4615 www fike com No P 1.50.01 MODELS Model Model Model Model Max mA Max mA Max mA Max mA Current mA Current mA Current mA Horn Tones Volume Volume Volume Volume Hz Interrupted Hz Interrupted Hz Interrupted Hz Interrupted Diagrams or Horn Strobe with Plate or Horn Strobe with Back Box Skirt AND ENGINEERING SPECIFICATIONS shall be a System Sensor Model listed to UL 1971 and be approved for fire protective service where ceiling strobes are permitted The strobe shall be wired as a primary signaling notification appliance and shall flash at 1Hz the strobe entire operating range The strobe light shall consist of a xenon flash tube and associated lens reflector Combination shall be a System Sensor Model listed to UL 1971 and UL 464 and be approved for fire protective where ceiling mount horn strobes are permitted The horn strobe shall be wired as a primary signaling notification and shall flash at 1Hz over its entire operating range The strobe light shall consist of a xenon flash tube and lens reflector system The horn shall have two tone options two audibility options and the option to switch a temporal 3 pattern and a non temporal continuous pattern These options shall be selected by a multi position Strobes shall be powered independently of the sounder with the removal of factory installed jumper wires The horn horn strobe models shall operate on a coded or non coded power supply The strobes must be powered continuously for the horn to operate Fike Corporation All Rights Reserved No P 1.50.01 August 2005 Specifications are subject to change without notice
