Fike P 1 65 01 Intelligent Manual Pull Station

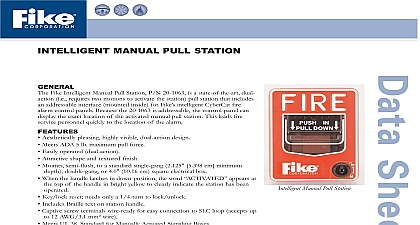

INTELLIGENT MANUAL PULL STATION Fike Intelligent Manual Pull Station P N 20 1063 is a state of the art dual i e requires two motions to activate the station pull station that includes addressable interface mounted inside for Fike intelligent CyberCat and Xi fire alarm control panels Because the 20 1063 is addressable the panel can display the exact location of the activated manual pull station leads fire service personnel quickly to the location of the alarm Aesthetically pleasing highly visible dual action design Meets ADA 5 lb maximum pull force Easily operated dual action Attractive shape and textured finish Mounts semi flush to a standard single gang 2.125 5.398 cm minimum double gang or 4.0 10.16 cm square electrical box When the handle latches in down position the word appears the top of the handle in bright yellow to clearly indicate the station has been Key lock reset needs only a 1 4 turn to lock unlock Includes Braille text on station handle Captive screw terminals wire ready for easy connection to SLC loop accepts to 12 AWG 3.1 mm wire Meets UL 38 Standard for Manually Actuated Signaling Boxes Maintenance personnel can open station for inspection and testing without an alarm condition Built in multi color LED which is visible through the handle of the station red in normal operation and latches on steady red when in alarm SPECIFICATIONS Fire Alarm Stations shall be non coded with a keyoperated reset lock in that they may be tested and so designed that after actual Emergency they cannot be restored to normal except by use of a key An station shall automatically condition itself so as to be visually detected as Manual stations shall be constructed of red colored LEXAN or equivalent with clearly visible operating instructions provided on cover The word FIRE shall appear on the front of the stations in white 1.00 inches 2.54 cm or larger Stations shall be suitable for surface or semi flush mounting on a standard single gang double gang or 4.0 cm square electrical box and shall be installed within the limits defined by Americans with Disabilities Act ADA or per national local requirements Stations shall be Underwriters Laboratories listed Manual stations shall with two wires to one of the control panel SLC loops The manual shall on command from the control panel send data to the panel the state of the manual switch Manual stations shall provide address by use of IR Tool Manual Pull Station UL S2203 FM 3020297 MEA pending CSFM pending S 10th Street P O Box 610 Blue Springs Missouri 64013 0610 U S A 816 229 3405 816 229 0314 www fike com No P 1.65.01 1 SPECIFICATIONS operating voltage 24 VDC SLC loop voltage 28.0 VDC SLC loop current 230 20 1063 can be semi flush mounted into a singlegang double gang or standard 4.0 10.16 cm square electrical outlet or surface mounted door and handle are molded of durable LEXAN or polycarbonate equivalent with a textured finish in then pulling down on the handle causes it to latch in the down activated position Once latched the word in bright yellow appears at the top of the handle while a portion of the handle protrudes from the of the station To reset the station simply unlock the station with the key and pull the door open This action the handle closing the door automatically resets the switch stations connect with two wires to one of the control panel SLC loops Each manual station on command from control panel sends data to the panel representing the state of the pull station switch IR tool allows address setting LINE INFORMATION Dual action addressable pull station key lock reset feature Fike Corporation All Rights Reserved No P 1.65.01 1 August 2005 Specifications are subject to change without notice
