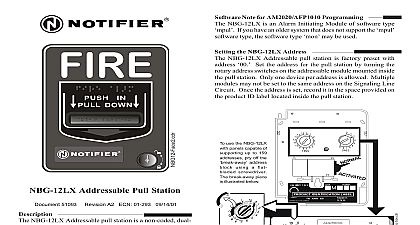

File Preview
File Preview
Click below to download for free

File Data

Name notifier-nbg-12lx-addressable-manual-pull-station-3870695421.pdf
Type PDF
Size 657.25 KB

Text Preview

NBG 12LX Manual Pull Station Notifier NBG 12LX is a state of the art dual action i e two motions to activate the station pull station that an addressable interface for any Notifier intelligent panel except FireWarden series panels and the NSP panel Because the NBG 12LX is addressable the control can display the exact location of the activated manual This leads fire personnel quickly to the location of the Maintenance personnel can open station for inspection and setting without causing an alarm condition Built in bicolor LED which is visible through the handle of station flashes in normal operation and latches steady when in alarm Handle latches in down position and the word to clearly indicate the station has been operated Captive screw terminals wire ready for easy connection to loop accepts up to 12 AWG 3.25 mm wire Can be surface mounted with SB 10 or SB I O or semi mounted Semi flush mount to a standard single double gang or 4 10.16 cm square electrical box Smooth dual action design Meets ADAAG controls and operating mechanisms guide Section 4.1.3 13 meets ADA requirement for 5 lb activation force Highly visible Attractive shape and textured finish Key reset Optional trim ring BG12TR Meets UL 38 Standard for Manually Actuated Signaling Braille text on station handle Up to 99 NBG 12LX stations per loop on CLIP protocol Up to 159 NBG 12LX stations per loop on FlashScan pro loops Dual color LED blinks green normal on systems door and handle are molded of durable polycarbonate with a textured finish Shipping Weight 9.6 oz 272.15 g Normal operating voltage 24 VDC Maximum SLC loop voltage 28.0 VDC Maximum SLC standby current 375 cid 2 A Maximum SLC alarm current 5 mA Temperature Range 32 to 120 0 to 49 Relative Humidity 10 to 93 noncondensing For use indoors in a dry location H 240 Devices NBG 12LX Manual Pull Station NBG 12LX will mount semi flush into a single gang dou or standard 4 10.16 cm square electrical outlet or will surface mount to the model SB 10 or SB I O sur backbox If the NBG 12LX is being semi flush mounted the optional trim ring BG12TR may be used The is usually needed for semi flush mounting with 4 cm or double gang boxes not with single gang boxes in then pulling down on the handle causes it to latch the down activated position Once latched the word in bright yellow appears at the top of the handle a portion of the handle protrudes from the bottom of the To reset the station simply unlock the station with the and pull the door open This action resets the handle clos the door automatically resets the switch manual station on command from the control panel data to the panel representing the state of the manual Two rotary decimal switches allow address settings 159 on FlashScan systems 1 99 on CLIP systems Fire Alarm Stations shall be non coded with a key reset lock in order that they may be tested and so that after actual Emergency Operation they cannot restored to normal except by use of a key An operated sta shall automatically condition itself so as to be visually as activated Manual stations shall be constructed of polycarbonate material with clearly visible operat instructions provided on the cover The word FIRE shall on the front of the stations in white letters 1.00 inches cm or larger Stations shall be suitable for surface on matching backbox SB 10 or SB I O or semi flush on a standard single gang double gang or 4 13 2012 Page 1 of 2 10.16 cm square electrical box and shall be installed the limits defined by the Americans with Disabilities Act or per national local requirements Manual Stations be Underwriters Laboratories listed stations shall connect with two wires to one of the con panel SLC loops The manual station shall on command the control panel send data to the panel representing the of the manual switch Manual stations shall provide setting by use of rotary decimal switches loop poll LED shall be clearly visible through the front of station The LED shall flash while in the normal condition stay steadily illuminated when in alarm Line Information Dual action addressable pull station Includes key feature Listed for Canadian and non Canadian appli Spanish English labelled version Portuguese labelled version Surface backbox metal Surface backbox plastic Optional trim ring Keys set of two New York City trim plate Listings and Approvals some cases certain modules or applications may not be by certain approval agencies or listing may be in pro Consult factory for latest listing status UL ULC Listed S692 listed for Canadian and non Cana applications MEA 67 02 E CSFM 7150 0028 0199 FDNY COA 6085 NFS2 640 COA 6098 NFS2 3030 BSMI CI313066760047 U S Coast Guard Lloyd Register FM Approved U S Patent No D428,351 6,380,846 6,314,772 and FlashScan are registered trademarks of Honeywell Inc by Honeywell International Inc All rights reserved Unauthorized use this document is strictly prohibited document is not intended to be used for installation purposes We try to keep our product information up to date and accurate cannot cover all specific applications or anticipate all requirements specifications are subject to change without notice more information contact Notifier Phone 203 484 7161 FAX 203 484 7118 in the U S A 2 of 2 DN 6726 D 4 13 2012
