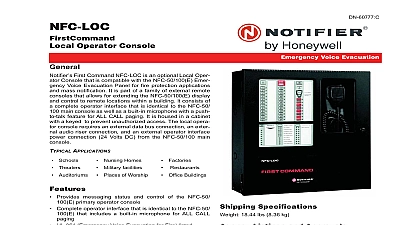

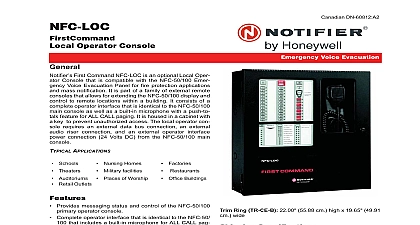

NFC LOC Operator Console First Command NFC LOC is an optional Local Oper Console that is compatible with the NFC 50 100 Emer Voice Evacuation Panel for fire protection applications mass notification It is part of a family of external remote that allows for extending the NFC 50 100 display and to remote locations within a building It consists of a operator interface that is identical to the NFC 50 100 console as well as a built in microphone with a push to feature for ALL CALL paging It is housed in a cabinet with key to prevent unauthorized access The local operator con requires an external data bus connection an external riser connection and an external operator interface connection 24 Volts DC from the NFC 50 100 main APPLICATIONS Schools Theaters Auditoriums Retail Outlets Nursing Homes Military facilities Places of Worship Factories Office Buildings Restaurants Provides messaging status and control of the NFC 50 100 operator console Complete operator interface that is identical to the NFC 50 that includes a built in microphone for ALL CALL pag Certified for seismic applications A maximum of eight NFC LOCs can be connected to an primary operating console Built in microphone with push to talk feature that can be for ALL CALL paging Fourteen programmable message buttons that can be used activate all speaker circuits remotely Sturdy cabinet design with a keyed lock to prevent unautho access Optional thumb lock available Simple and straightforward user interface Specifications POWER REQUIREMENTS 24VDC non resettable power from the NFC50 100 Operator Interface Power Non supervised NFC 50 100 Product Manual P N LS10001 001NF E for and alarm current requirements as well as battery cal Specifications 19.0 48.26 cm high x 16.65 42.29 cm wide x 5.2 deep 19.26 48.92cm high x 16.821 42.73cm wide x 670 deep DN 60812 A2 Voice Evacuation Ring TR CE B 22.00 55.88 cm high x 19.65 49.91 wide Specifications 18.44 lbs 8.36 kg Listings and Approvals listings and approvals below apply to the basic NFC 50 Fire emergency voice evacuation system In some cases modules may not be listed by certain approval agen or listing may be in process Consult factory for latest list status UL ULC Listed S635 and Codes NFC LOC complies with the following ULC Standard and Building Codes CAN ULC S635 2012 IBC 2009 IBC 2006 IBC 2003 IBC 2000 Seis 7 28 2015 Page 1 of 4 Circuit Circuits TB21 amplifier expander battery J7 operator console CHG 120 charger charger Emergency Command Center Possible Configurations 2 of 4 Canadian DN 60812 A2 7 28 2015 and Indicators BUTTON CONTROLS All Call MNS Control System Control Speaker Select 1 24 Message Select Buttons 1 8 Diagnostic Select Trouble Silence Console Lamp Test STATUS INDICATORS VISIBLE WITH DOOR CLOSED Fire System Active green MNS Control green System Control green System in Use green Speaker Zone 1 24 Active green Speaker Zone 1 24 Fault yellow OK to Page green Microphone Trouble yellow Message 1 8 Active red Message 1 8 Fault yellow Remote Amplifier 1 8 Fault yellow LOC RM 1 8 Fault yellow LOC RM 1 8 Active green Main Console Fault yellow AC Power green Ground Fault yellow Charger Fault yellow Battery Fault yellow Data Bus Fault yellow NAC Fault yellow NAC Active green System Trouble yellow Audio Riser Fault yellow STATUS INDICATORS VISIBLE WITH DOOR AND PANEL OPEN Speaker Volume Control Fault yellow Option Card Fault yellow Amplifier Over Current Fault yellow Line Information Ordering Local Operator Console Complete user interface Primary operating Console 50 Watt 25VRMS speaker zone emergency voice evacuation system microphone built in tone generator and 14 recordable Please refer to the data sheet DN 60813 for more 25V 50 watt audio amplifier module Adding a speaker circuit increases the total NFC 50 100 power to 100 watts or can also be used as a backup amplifier 70V 50 watt audio amplifier module Adding a speaker circuit increases the total NFC 50 100 power to 100 watts or can also be used as a backup amplifier Optional Trim Ring 17.624 high 44.77 cm x 16.0 40.64 cm 25 to 75 ampere hours AH external battery charger 25 120 ampere hours AH external battery charger Replacement microphone only Battery 12volt 7.0AH Two required Battery 12volt 12.0AH Two required Battery 12volt 18.0AH Two required Optional Thumb Latch Non UL listed and Humidity ranges system meets ULC requirements for operation at 0 49 C F and at a relative humidity 93 2 RH non at 32 2 90 3 However the useful of the system standby batteries and the electronic com may be adversely affected by extreme temperature and humidity Therefore it is recommended that this and its peripherals be installed in an environment with normal room temperature of 15 27 C 60 80 F Accessories Optional Trim Ring 17.624 high 44.77 cm x 16.0 40.64 cm Seismic kit for the NFC LOC Please to document 53880 for requirements on mounting the for seismic applications DN 60812 A2 7 28 2015 Page 3 of 4 Requirements Product manual part number LS10028 001NF E for wiring requirements and Notifier are registered trademarks of Honeywell Inc by Honeywell International Inc All rights reserved Unauthorized use this document is strictly prohibited document is not intended to be used for purposes We try to keep our information up to date and accurate cannot cover all specific applications or all requirements All specifications are to change without notice more information contact Notifier 289 1114 Whitmore Road Ontario LZL 7Z4 4 of 4 Canadian DN 60812 A2 7 28 2015
