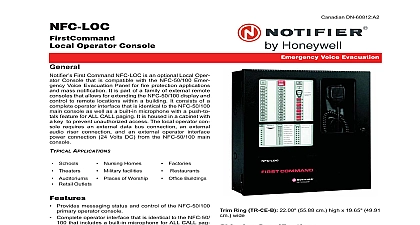

NFC LOC Operator Console First Command NFC LOC is an optional Local Oper Console that is compatible with the NFC 50 100 E Emer Voice Evacuation Panel for fire protection applications mass notification It is part of a family of external remote that allows for extending the NFC 50 100 E display control to remote locations within a building It consists of complete operator interface that is identical to the NFC 50 main console as well as a built in microphone with a push feature for ALL CALL paging It is housed in a cabinet a keyed to prevent unauthorized access The local opera console requires an external data bus connection an exter audio riser connection and an external operator interface connection 24 Volts DC from the NFC 50 100 main APPLICATIONS Schools Theaters Auditoriums Nursing Homes Military facilities Places of Worship Factories Office Buildings Restaurants Provides messaging status and control of the NFC 50 primary operator console Complete operator interface that is identical to the NFC 50 that includes a built in microphone for ALL CALL UL 864 Emergency Voice Evacuation for Fire listed Certified for seismic applications A maximum of eight NFC LOCs can be connected to an primary operating console Built in microphone with push to talk feature that can be for ALL CALL paging Fourteen programmable message buttons that can be used activate all speaker circuits remotely Sturdy cabinet design with a keyed lock to prevent unautho access Optional thumb lock available Simple and straightforward user interface Specifications POWER REQUIREMENTS 24VDC non resettable power from the NFC50 100 E Operator Interface Power Non supervised NFC 50 100 E Product Manual P N LS10001 001NF E standby and alarm current requirements as well as battery Specifications 19.0 48.26 cm high x 16.65 42.29 cm wide x 5.2 deep 19.26 48.92cm high x 16.821 42.73cm wide x 670 deep Ring TR CE B 22.00 55.88 cm high x 19.65 49.91 wide Voice Evacuation Specifications 18.44 lbs 8.36 kg Listings and Approvals listings and approvals below apply to the NFC LOC Local Console In some cases certain modules may not be by certain approval agencies or listing may be in pro Consult factory for latest listing status UL Listed S635 and Codes NFC LOC complies with the following UL Standards 72 Fire Alarm system requirements International Build Codes and California Building Codes UL S635 UL 2572 2012 IBC 2009 IBC 2006 IBC 2003 IBC 2000 Seis CBC 2007 Seismic 7 28 2015 Page 1 of 4 and Indicators BUTTON CONTROLS All Call MNS Control System Control Speaker Select 1 24 Message Select Buttons 1 8 Diagnostic Select Trouble Silence Console Lamp Test STATUS INDICATORS VISIBLE WITH DOOR CLOSED Fire System Active green MNS Control green System Control green System in Use green Speaker Zone 1 24 Active green Speaker Zone 1 24 Fault yellow OK to Page green Microphone Trouble yellow Message 1 8 Active red Message 1 8 Fault yellow Remote Amplifier 1 8 Fault yellow LOC RPU RM 1 8 Fault yellow LOC RPU RM 1 8 Active green Main Console Fault yellow AC Power green Ground Fault yellow Charger Fault yellow Battery Fault yellow Data Bus Fault yellow NAC Fault yellow NAC Active green System Trouble yellow Audio Riser Fault yellow STATUS INDICATORS VISIBLE WITH DOOR AND PANEL OPEN Speaker Volume Control Fault yellow Option Card Fault yellow Amplifier Over Current Fault yellow Line Information Ordering Local Operator Console Complete user interface Primary operating Console 50 Watt 25VRMS speaker zone emergency voice evacuation system microphone built in tone generator and 14 recordable Please refer to the data sheet DN 60772 for more Export version Primary operating Console 50 25VRMS single speaker zone emergency voice evacua system Integral microphone built in tone generator and recordable messages 240 VAC 50 Hz Please refer to the sheet DN 60772 for more information Speaker Circuit Zone Expander Module 2 of 4 DN 60777 C 7 28 2015 25V 50 watt audio amplifier module Adding a speaker circuit increases the total NFC 50 100 power to 100 watts or can also be used as a backup amplifier 70V 50 watt audio amplifier module Adding a speaker circuit increases the total NFC 50 100 power to 100 watts or can also be used as a backup amplifier Remote Phone Jack Seismic kit for the NFC LOC Please to document 53880 for requirements on mounting the for seismic applications Optional Trim Ring 17.624 high 44.77 cm x 16.0 40.64 cm 25 to 75 ampere hours AH external battery charger 25 120 ampere hours AH external battery charger Replacement microphone only Battery 12volt 7.0AH Two required Battery 12volt 12.0AH Two required Battery 12volt 18.0AH Two required Optional Thumb Latch Non UL listed and Humidity ranges system meets NFPA requirements for operation at 0 49 F and at a relative humidity 93 2 RH non at 32 2 90 3 However the useful of the system standby batteries and the electronic com may be adversely affected by extreme temperature and humidity Therefore it is recommended that this options amplifier circuit Circuit Circuits TB21 firefighter telephone local console remote unit remote battery J7 audio 50W amplifier 125W amplifier remote CHG 120 charger charger FirstCommand Possible Configurations 7 28 2015 Page 3 of 4 and its peripherals be installed in an environment with normal room temperature of 15 27 C 60 80 F Accessories Optional Trim Ring 17.624 high 44.77 cm x 16.0 40.64 cm Requirements Product manual part number LS10028 001NF E for wiring requirements and Notifier are registered trademarks of Honeywell Inc by Honeywell International Inc All rights reserved Unauthorized use this document is strictly prohibited document is not intended to be used for installation purposes We try to keep our product information up to date and accurate cannot cover all specific applications or anticipate all requirements specifications are subject to change without notice more information contact Notifier Phone 203 484 7161 FAX 203 484 7118 in the USA 4 of 4 DN 60777 C 7 28 2015
