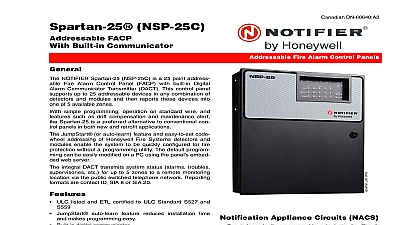

NSP 25C Rev 2 Addressable FACP Built in Communicator NOTIFIER Spartan 25 NSP 25C is a 25 point address Fire Alarm Control Panel FACP with built in Digital Communicator Transmitter DACT This control panel up to 25 addressable devices in any combination of and modules and then reports these devices into of 5 available zones simple programming operation on standard wire and such as drift compensation and maintenance alert Spartan 25 is a preferred alternative to conventional con panels in both new and retrofit applications JumpStart or auto learn feature and easy to set code addressing of Honeywell Fire Systems HFS or equiva Notifier detectors and modules enable the system to be configured for fire protection without a programming The default programming can be easily modified on a using the panel embedded web server integral DACT transmits system status alarms troubles etc for up to 5 zones to a remote monitoring via the public switched telephone network Reporting are contact ID SIA 8 or SIA 20 SBUS supports two N ANN 80C Remote Annunciators JumpStart auto learn feature reduces installation time makes programming easy Built in digital communicator communicator compatible Two programmable Style Y Class B notification appliance Selectable strobe synchronization for System Sensor or NACs devices Drift compensation Alarm verification per zone of detectors Walk test Detectors and modules are code wheel addressed for installation time Maintenance alert region Uses standard wire unshielded or twisted pair Central Station reporting up to five zones Custom programming performed control built in browser no programming software is Communication Single addressable DCL loop which meets ULC require DCLA DCLB DCLC 25 addressable device capacity any combination of detectors and modules Compatible with Honeywell Fire Systems HFS or equiva Notifier detectors and modules DN 60705 A1 Fire Alarm Control Panels Appliance Circuits NACS Two independently programmable output circuits Circuits be configured for the following outputs Style Y Class B Door Holder Service cannot be used for notification Silence Inhibit and Auto silence timer options Continuous or Temporal code Selectable strobe synchronization per NAC Up to 2.0 A total output power 1.0 A for auxiliary power and holder Each circuit can source up to the total system 2.0 A and Software Auto learn JumpStart feature for easy programming installation time Custom programming can be performed through control built in browser Requires PC with MS Internet or Mozilla Firefox and standard Cat5e Ethernet 5 programmable zones combination of alarm supervisory 9 19 2011 Page 1 of 4 Two programmable Form C relays and one Form C trouble Aux Power Source cannot be used for notification appli Interface panel has a 3 character 7 segment display for Point ID INDICATORS AC Power green Fire Alarm per zone red Supervisory per zone yellow Trouble Disable per zone yellow Active per NAC green Trouble Disable per NAC yellow Alarm Silenced yellow System Trouble yellow Low Battery Fault yellow System Ground Fault yellow Walk Test yellow CONTROLS Acknowledge Silence Reset Lamp Test Drill Walktest Disable per zone Disable per NAC JumpStart 0 9 numeric keypad Station or HFS DA Duct Smoke or HFS MMA Module or HFS MRA Module or HFS PA or HFS TA 2 of 4 Canadian DN 60705 A1 9 19 2011 Strobes Horns and NACs Line Information 25 point addressable fire alarm control panel main circuit board chassis backbox and door Black VAC Listed for Canadian applications For versions used outside Canada see DN 60703 FIRE SYSTEMS DEVICES Honeywell Fire Systems addressable photoelectric detector Includes base Honeywell Fire Systems addressable photoelectric detector with thermal sensor Includes base Honeywell Fire Systems addressable fixed tempera heat detector Includes base Honeywell Fire Systems addressable Mini Monitor for normally open contact devices Honeywell Fire Systems addressable relay mod Honeywell Fire Systems addressable photoelectric smoke detector Includes detector photoelectric smoke EQUIVALENT DEVICES Addressable dual action manual pull station Addressable low profile photoelectric smoke detec Addressable with thermal sensor Fast response low profile heat detector InnovairFlex low flow non relay duct detector hous uses NP 100RA ordered separately Addressable remote test capable detector for use DNRA duct smoke detector housing Miniature version of FMM 1A Excludes LED Style D option Connects with wire pigtails May mount in backbox Addressable relay module containing two isolated of Form C contacts which operate as a DPDT switch This module isolates the SLC loop from short cir conditions ANNUNCIATORS Remote fire alarm indicator mimics the informa displayed on the FACP LCD display Recommended wire is un shielded Red surface mount backbox with angled White surface mount backbox with wedge Surface mount backbox for the NOT BG12LX plastic Optional trim ring for semi flush mounting the pull Battery backbox holds up to two 25 AH batteries and Battery box houses two 55 AH batteries Battery charger for lead acid batteries with a rating 25 to 75 AH Remote battery charging system for lead acid bat with a rating of 55 to 120 AH Requires additional NFS for mounting Series Batteries See DN 6933 DACT Phone Cord 2 required Requirements shielded wire is not required it is recommended that all wiring be twisted pair to minimize the effects of electrical Refer to the panel manual for wiring details DN 60705 A1 9 19 2011 Page 3 of 4 SPECIFICATIONS Capacity DCL Circuits 1 Addressable device capacity 25 Programmable software zones 5 Annunciators 2 Specifications AC Power NSP 25C 120 VAC 60 Hz 1.5 A AC wire size minimum 14 AWG 2.00 mm with 600 V insulation Non supervised Battery Charging capacity 7 18 AH NSP 25C cabinet maximum of two 7 AH batteries Larger batteries a separate battery cabinet such as the BB 26 or DCL Circuit Supervised and power limited Notification Appliance Circuits Terminal Strip provides connections for two NACs Style Y B Maximum signaling current 2.0 A End of Line Resistor 4.7 kOhm watt P N 71252 UL for Style Y Class B NAC Refer to the NSP 25C for listed compatible devices Standby Current 135 mA Alarm Current 220 mA Aux Power Circuits 1.0A 24 VDC per circuit power Two Programmable Relays and One Fixed Trouble Contact rating 2.5 A 24 VDC resistive Form C relays nonpower limited nonsupervised Specifications
