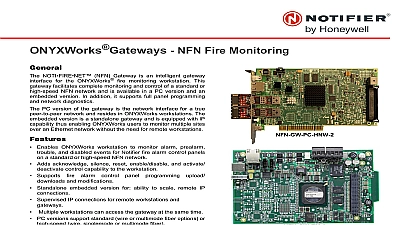

ONYXWorks Gateways Fire Monitoring NOTI Gateway is an intelligent gateway for the ONYXworks fire monitoring workstation gateway facilitates complete monitoring and control of a network and is available in a PC version an embedded version In addition it supports full panel and network diagnostics PC version of the gateway is the network interface for a peer to peer network and resides in ONYX Series The embedded version is a standalone gateway is equipped with IP capability thus enabling ONYX users to monitor multiple sites over an Ethernet without the need for remote workstations Enables ONYX Series workstation to monitor alarm pre trouble and disabled events for Notifier fire alarm panels on a NOTI network Adds acknowledge silence reset enable disable and control capability to the workstation Supports fire alarm control panel programming upload and modifications Standalone embedded version for ability to scale remote Supervised IP connections for remote workstations and Multiple workstations can access the gateway at the same connections PC versions support wire or multimode fiber options Gateway redundancy for network survivability compatible with NOTI Gateway and ONYX FirstVision and version 5.0 and higher for the following and devices ONYX Series AM2020 AFP1010 version 5.0 SIB NET AFP 200 version 5.0 NAM AFP 300 AFP 400 version 5.0 NAM BACnet Gateway NCA 2 NCA Network Control Annunciator NOTI Server version Requires an ONYXworks Workstation see ONYXworks sheet DN 7048 Operating temperature 0 to 49 32 to 120 version current 450 mA 24 VDC voltage range 19 VDC to 29 VDC Systems Operating temperature 0 to 49 32 to 120 Mounts on a CHS 4L chassis in a CAB 4 Series cabinet data sheet DN 6857 Direct connection NFS2 640 NFS 640 NFS 320 and NFS 3030 fire alarm control panels or NCM F see data sheet DN 6861 and Codes NOTI Gateway complies with the following Standards and NFPA 72 Fire Alarm Systems UL 864 UL 1076 UL 2017 ULC S559 04 ULC S527 99 and Approvals listings and approvals apply to the modules specified in document In some cases certain modules or applications not be listed by certain approval agencies or listing may in process Consult factory for latest listing status UL ULC S5697 CSFM 7300 1525 103 09 21 09 Page 1 of 2 MEA 286 07 E Information NOTI Gateway embedded PC board Surge Suppressor PNET 1 NOTI Gateway PC card for wire PCI card Included in ONYXWORKS NW UL listed NOTI Gateway PC card for UL listed workstation PC VERSION Gateway required components media ONYXWorks Workstation adding to an existing system please provide Customer Ser with the 5 digit software key number of your workstation upgrade authorization will be provided for you EMBEDDED VERSION Gateway NCM W or NCM F for connection to NOTI For Gateway versions 3.0 and above the Gateway is PC with Windows XP over IP or through a cross over ethernet cable Standard Ethernet network cable with RJ45 connectors CHS 4L with a CAB 4 Series cabinet for standalone Monitoring version 5.0 Monitoring version 5.0 GATEWAY A UL Listed ethernet TCP IP switch is required between a shared IP network and the ONYXWORKS equipment Contemporary Control Systems Inc has several UL864 recognized switching hubs NOTIFIER ONYX and ONYXWorks are registered trademarks NOTI NOTIFIY IP and ONYX FirstVision are of Honeywell International Inc Windows is a registered of Microsoft Corporation by Honeywell International Inc All rights reserved Unauthorized use this document is strictly prohibited document is not intended to be used for installation purposes We try to keep our product information up to date and accurate cannot cover all specific applications or anticipate all requirements specifications are subject to change without notice more information contact Notifier Phone 203 484 7161 FAX 203 484 7118 in the U S A 2 of 2 dn 7060 b1 09 21 09
