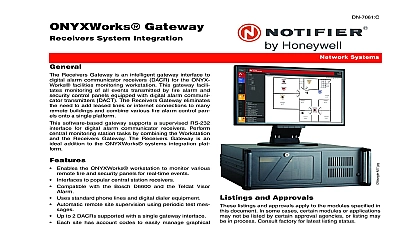

ONYXWorks Gateway System Integration Receivers Gateway is an intelligent gateway interface to alarm communicator receivers DACR for the ONYX facilities monitoring workstation This gateway facili monitoring of all events transmitted by fire alarm and control panels equipped with digital alarm communi transmitters DACT The Receivers Gateway eliminates need to add leased lines or internet connections to many buildings and combine various fire alarm control pan onto a single platform software based gateway supports a supervised RS 232 for digital alarm communicator receivers Perform monitoring station tasks by combining the Workstation the Receivers Gateway The Receivers Gateway is an addition to the ONYXWorks systems integration plat Enables the ONYXWorks workstation to monitor various fire and security panels for real time events to popular central station receivers Compatible with the Bosch D6600 and the Teldat Visor Uses standard phone lines and digital dialer equipment Automatic remote site supervision using periodic test mes Up to 2 DACRs supported with a single gateway interface Each site has account codes to easily manage graphical and events Receivers Gateway is compatible with ONYXWorks and an RS 232 interface for the Contact ID format VERSION Requires an ONYXWorks Workstation see ONYX data sheet DN 7048 DB 9 to DB 9 serial cables refer to Receivers Gateway P N 52308 and Codes ONYXWorks Gateway complies with the following UL Standards and NFPA 72 Fire Alarm Systems require UL 827 UL 864 UL 1076 UL 2017 UL 2034 UL 2043 UL 2075 UL 2572 ULC S527 11 ULC S559 13 Systems and Approvals listings and approvals apply to the modules specified in document In some cases certain modules or applications not be listed by certain approval agencies or listing may in process Consult factory for latest listing status UL ULC Listed S5526 S6010 CSFM 7300 1525 103 DACR GW Information Receivers Gateway software version Please supply USB key number when ordering if upgrad an existing system PC VERSION Gateway required components ONYXWorks Workstation 03 02 2017 Page 1 of 2 with with Workstation Software single ONYXWorks Workstation can easily be set up and to monitor multiple sites multiple sites from a single setup and programming and ONYXWorks are registered trademarks of Honeywell Inc Microsoft and Windows are registered trademarks of Corporation Intel is a registered trademark of Intel Corporation is a registered trademark of the Teldat Corporation by Honeywell International Inc All rights reserved Unauthorized use this document is strictly prohibited All rights reserved Unauthorized use of document is strictly prohibited document is not intended to be used for installation purposes We try to keep our product information up to date and accurate cannot cover all specific applications or anticipate all requirements specifications are subject to change without notice more information contact Notifier Phone 203 484 7161 FAX 203 484 7118 in the U S A 2 of 2 DN 7061 C 03 02 2017
