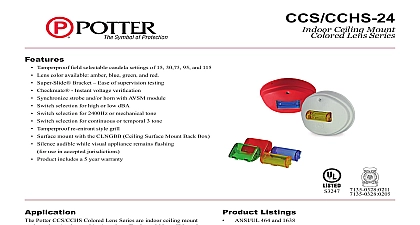

Potter CCS-24 Series Ceiling Mount Colored Lens Strobe

File Preview
File Preview
Click below to download for free

Text Preview

Features Tamperproof field selectable candela settings of 15 30,75 95 and 115 Lens color available amber blue green and red Super Slide Bracket Ease of supervision testing Checkmate Instant voltage verification Synchronize strobe and or horn with AVSM module Switch selection for high or low dBA Switch selection for 2400Hz or mechanical tone Switch selection for continuous or temporal 3 tone Tamperproof re entrant style grill Surface mount with the CLNGBB Ceiling Surface Mount Back Box Silence audible while visual appliance remains flashing for use in accepted jurisdictions Product includes a 5 year warranty Potter CCS CCHS Colored Lens Series are indoor ceiling mount or horn strobe combinations that offer dependable audible and signals for warning and emergency notification Applications emergency communication severe weather emergency and many more CCS CCHS Colored Lens Series are 24VDC appliances available lens colors of amber blue green and red The Colored Lens series tamperproof field selectable options of 15 30 75 95 and 115 They have a minimal operating current and a minimum flash of 1 Hz within the listed voltage range The strobes can be synced a Gentex sync protocol or the AVSM Sync Module CCS CCHS Colored Lens Series is shipped with a die cast 4 plate which incorporates the popular Super Slide feature allows the installer to easily test for supervision The product also a locking mechanism that secures the product to the bracket showing any screws The Colored Lens Series also features patented Checkmate Instant Voltage Verification Feature which the installer to check the voltage without removing the signal Listings ANSI UL 464 and 1638 7135 0328 0205 CCHS Series 7135 0328 0211 CCS Series Specifications Voltage Limitations Connections Weight 24VDC 16 33VDC 120 0 49 Only H x 2.6 W accept 18 12 AWG mount with CLNGBB lbs PAGE 1 OF 4 REV B 10 14Potter Electric Signal Company LLC St Louis MO Tech Support 866 956 1211 Customer Service 866 572 3005 www pottersignal comCCS CCHS 24Indoor Ceiling Mount Colored Lens Seriesfirealarmresources com Series Colored Lens Strobe Selectable Candela Number Color Max Strobe Current Ratings 24VDC Regulated Gree and Lens Lens unfiltered FWR ratings see installation manual mA Number Color dBA at 10 per ANSI UL 464 Anechoic Room dBA at 10 Series Colored Lens Horn Strobe Selectable Candela Setting 3 2400Hz 3 Mechanical 2400Hz Decibel and Current Ratings at 10 UL 464 at 10 UL 464 24VDC Operating at High mA Mechanical the horn in this mode at this voltage will result in not meeting the ANSI UL 464 reverberant sound level required for public mode fire service These settings are acceptable only for private mode fire alarm Use the high dBA setting for public mode application sound output for the temporal 3 tone is rated lower since the time the horn off is averaged into the sound output rating While the horn is producing tone in the temporal 3 mode its sound pressure is the same as continuous does not recommend using a coded or pulsing signal circuit with any our strobe products PAGE 2 OF 4 8830052 REV B 10 14Potter Electric Signal Company LLC St Louis MO Tech Support 866 956 1211 Customer Service 866 572 3005 www pottersignal comCCS CCHS 24Indoor Ceiling Mount Colored Lens Seriesfirealarmresources com Super Slide Snap Cover Over Assembly Insert Locking Screw Slide Onto Bracket Instant Voltage Locations access holes are provided in the back of the terminal block to allow the voltage to be measured directly without removing the device Typically this be done at the end of the line to confirm design criteria Most measurments will be taken using the S and S locations although access is provided other locations Switch positions 1 and 2 in the down position to select isolated horn and strobe power inputs Switch 3 selects between temporal or tone Up is temporal Switch 4 selects between mechanical or high frequency tone Up is mechanical Switch 5 selects between high or dBA Up is dBA CARE SHOULD BE TAKEN TO NOT SHORT THE TEST PROBES PAGE 3 OF 4 REV B 10 14Potter Electric Signal Company LLC St Louis MO Tech Support 866 956 1211 Customer Service 866 572 3005 www pottersignal comCCS CCHS 24Indoor Ceiling Mount Colored Lens Seriesfirealarmresources com Diagrams All strobes are designed to flash as specified with continuous applied voltage Strobes should not be used on coded or pulsing signaling circuits AVSM control module or Gentex synchronization protocol is permitted to synchronize the strobe horn and or mute the horn SYNCHRONIZATION WIRING INFORMATION REFERENCE AVSM CONTROL MODULE DATA SHEET 8830050 AND OR CONTROL MODULE MANUAL FOR SYNCHRONIZATION MODULE WIRING DIAGRAMS AVSM CONTROL MODULE SHEET AND MANUAL CAN BE OBTAINED AT http pottersignal com OR CALL POTTER ELECTRIC AT 1 800 325 3936 and Engineering Specifications audible and or visible signal shall be Potter Colored Lens Series or approved equal and shall be listed by Underwriters Laboratories Inc per ANSI UL and ANSI UL 464 and shall have compliance with the polar dispersion requirements of ANSI UL 1971 The notification appliance shall also be listed the California State Fire Marshal CSFM notification appliance combination audible visible shall produce a peak sound output of 90 dBA or greater as measured in an anechoic chamber The appliance shall also have the capability to silence the audible signal while leaving the visible signal energized with the use of a single pair of power Additionally the user shall be able to select either continuous or temporal tone output with the temporal signal having the ability to be synchronized shall be capable of being installed so that any unauthorized attempt to change the candela setting will result in a trouble signal at the fire alarm control audible visible and visible signaling appliance shall also maintain a minimum flash rate of 1Hz or up to 2 Hz regardless of power input voltage The shall have an operating current of 124mA or less at 24 VDC for the 15Cd strobe circuit appliance shall be polarized to allow for electrical supervision of the system wiring The unit shall be provided with a mounting bracket with terminals barriers for input output wiring and be able to mount to a single gang or double gang box or double workbox without the use of an adapter plate The shall have an input voltage range of 16 33 volts with either direct current of full wave rectified power for 24 volt models appliance shall be capable of testing supervision without disconnecting wires verify voltage without removing the unit and be capable of mounting a surface back box PAGE 4 OF 4 8830052 REV B 10 14Potter Electric Signal Company LLC St Louis MO Tech Support 866 956 1211 Customer Service 866 572 3005 www pottersignal comCCS CCHS 24Indoor Ceiling Mount Colored Lens Seriesfirealarmresources com
