Potter CSLB 120 Series Indoor Outdoor Wall Mount Colored Lens Strobe

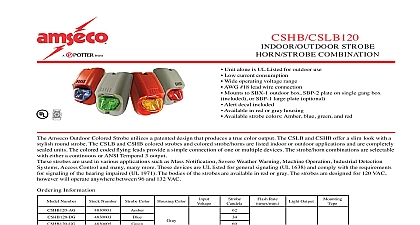

CSHB CSLB120 INDOOR OUTDOOR STROBE COMBINATION Unit alone is UL Listed for outdoor use Low current consumption Wide operating voltage range AWG 18 lead wire connection Mounts to SBX 1 outdoor box SBP 2 plate on single gang box or SBP 1 large plate optional Alert decal included Available in red or gray housing Available strobe colors Amber blue green and red Amseco Outdoor Colored Strobe utilizes a patented design that produces a true color output The CSLB and CSHB offer a slim look with a round strobe The CSLB and CSHB colored strobes and colored strobe horns are listed indoor or outdoor applications and are completely units The colored coded ying leads provide a simple connection of one or multiple devices The strobe horn combinations are selectable either a continuous or ANSI Temporal 3 output strobes are used in various applications such as Mass Noti cation Severe Weather Warning Machine Operation Industrial Detection Access Control and many many more These devices are UL listed for general signaling UL 1638 and comply with the requirements signaling of the hearing impaired UL 1971 The bodies of the strobes are available in red or gray The strobes are designed for 120 VAC will operate anywhere between 96 and 132 VAC Number Number Color Color Rate Output Information Contact Potter before ordering AC High Wall Mount Speci cations Amseco CSLB120 colored strobe or CSHB120 colored strobe horn shall be provided for visual and audible with CSHB noti cation The shall be completely sealed and listed for both indoor and outdoor installations For outdoor installations the SBX 1 back box shall be The devices shall be UL listed for General Signaling and shall comply with light output requirements of UL 1971 for spacing The strobes shall have a minimum light output of 15 cd The re ective mirror shall be the same color as the lens to produce a true color of red blue or green The strobe shall operate between 96 and 132 VAC regulated or full wave recti ed The strobe shall ash a minimum once a second continuously at 96 VAC Electric Signal Company 2081 Craig Road St Louis MO 63146 4161 Phone 800 325 3936 Canada 888 882 1833 www pottersignal com IN USA 8850041 REV A 1 OF 2 INDOOR OUTDOOR STROBE COMBINATION Gang Box Covers inches mm Surface Mount Back Box 3.4 31 32 50 Connector and Standard Box Plate 165 85.7 10 22 5.6 4.7 60 16 Diagram 1 and Horn Unison View View View View Next Color 2 and Horn 2 Orange Hot 2 White Neutral Strobe 2 Red Hot 2 Black Neutral Next Next IN USA 8850041 REV A 2 OF 2
