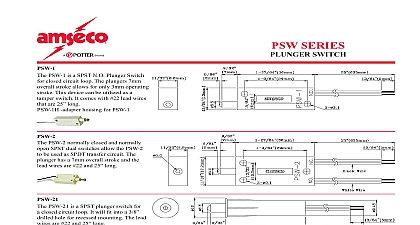

PSW SERIES SWITCH Brand PSW 1 is a SPST N O Plunger Switch closed circuit loop The plungers 7mm stroke allows for only 3mm operating This device can be utilized as a switch It comes with 22 lead wires are 25 long adapter housing for PSW 1 PSW 2 normally closed and normally SPST dual switches allow the PSW 2 be used as SPDT transfer circuit The has a 7mm overall stroke and the wires are 22 and 25 long PSW 21 is a SPST plunger switch for closed circuit loop It will fit into a 3 8 hole for recessed mounting The lead are 22 and 25 long PSW 22 is a SPST N O type for a circuit system It will fit into a 3 8 hole for recessed mounting The lead are 22 and 25 long Carry Switching AWG lead Amp VDC Amp amp Type A N O C N O N C A N O A N O Electric Signal Co LLC St Louis MO Cust Service 866 240 1870 Tech Support 866 956 1211 Canada 888 882 1833 www pottersignal com IN USA 8880108 REV B 1 OF 1
