Cerberus Pyrotronics Conventional Conventional Fire Alarm Systems & Accessories 6200

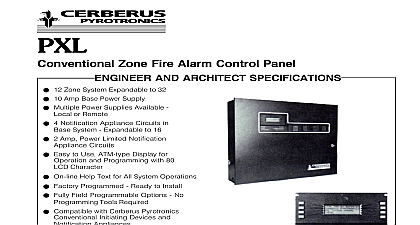

Conventional Fire Alarm Accessories Fire Alarm Control 12 Zones Expandable to 32 10 Amp Power Supply to 20 4 Notification Appliance Expandable to 16 2 Amps per Notification Circuit Model PXL Part No 599 694189 Alarm Control Panels of Cerberus Pyrotronics conventional Fire Alarm Controls listed approved by UL ULC CSFM NYMEA These based panels are listed as compatible with of the accessories included here They also include based features to meet any need including monitoring waterflow alarms event history logs zone bypass They provide a complete system solution any zoned building Features Easy to Use ATM Style for Operating Programming Fire Alarm Control 4 Zones Expandable to 8 3 Amp Power Supply 2 Notification Appliances Circuits Field Programmable Software Features Every Application Model SXL Part No 599 692530 NUMBER Self Diagnostic Detector Advanced Field Cleanable Chamber Design UL Listed Self Test Feature Multi Color LED for Normal Trouble or Indication Low Profile Design Easy Twist In Base Design Made in USA at ISO 9001 Facility ULC Listed FM CSFM Approved Detector Model PE 11 Part No 500 094150 Base Model DB 11 Part No 500 094151 Detectors Pyrotronics smoke detectors have been devel using an extensive history of fire test data This is designed into new technology products provide high reliability while reducing installation and test time DI 3 has standardized the ionization detection principle over 15 years PE 11 uses a self test feature to eliminate need for special sensitivity meters The PBA 1191 both transmitter and receiver in one housing to installed wiring costs These devices satisfy any detection problem Ionization Smoke Detector Adjustable Sensitivity Dual Chamber Sensitivity Test Points Simple Twist Lock Assembly Optional Auxiliary Relay Screw Clamp Terminals Alarm LED ULC Listed FM CSFM Approved Detector Model DI 3 Part No 500 081806 Base Model DB 3S Part No 595 381804 Beam Smoke Detector Transmitter and Receiver Installed in the Housing Easy Alignment and Installation Two Wire Installation Suitable for Ranges from 17 Feet to 280 Feet Response Behavior Selectable in Three Settings High Immunity to Extraneous Light Automatic and Comprehensive Self Test Operates According to the Principle of Light by Smoke Detector Model PBA 1191 Part No 500 095076 Base Model PBB 1191 Part No 500 095077 Reflector Model PBR 1191 Part No 500 095078 Voice Alarm Communication System 25 or 70.7 VRMS Audio Field Selected True 100 Watts RMS Output Capacity Up to 11 Optional Speaker and Strobe Modules in One Cabinet All Outputs are Power Limited Supervised Style Y Class B and Style Z Class A and Strobe Circuits Dry Contact or polarity reversal Activation Activation Inputs are Fully Supervised Optional Digital MessageMaker is Field Coded Tone Option Backup Evacuation Tone Option Stand Alone or for Use with any Fire Alarm Control Panel ULC Listed CSFM NYMEA Model VoiceCom Part No 500 693713 50 Watts Model VoiceCom MM Part No 500 693714 Watts with MessageMaker Model VoiceCom L Part No 500 694227 100 Watts Auxiliary Power Supply NAC Extender 6 Amps of Notification Appliance Power Advanced Microprocessor Control 24 VDC Regulated Output Voltage Four Power Limited Notification Outputs Synchronized ANSI Temporal Pattern Class Selectable Ground Fault Detection Battery Supervision 3 Amp Auxiliary Power Output Trouble Contact for Monitoring Model PAD 2 Part No 500 694275 Evacuation Americans with Disabilities Act has driven the need for capacity in all buildings VoiceCom Emergency Evacuation System and the PAD 2 NAC provide for the control of notification appliances any structure Both products can be configured multiple ways to meet local codes for installation as well for safe building evacuation Notification Appliances S Strobes 15 15 75 75 110 Models SS Strobes Synchronized MTL 8 Tone Electronic Horns MTLS 8 Tone Horn Strobes E Single Tone Horns ES Single Tone Horn Strobes HN Electro Mechanical Horn HNS Electro Mechanical Horn SM Speakers to 2 Watt and Strobes SH High Output Speakers 1 3 to 2 and Speaker Strobes Meet the Americans with Disabilities Meet UL 1971 Appliances Pyrotronics F Series Notification Appliances will satisfy the requirements of ADA and UL 1971 and are UL ULC compatible with our systems Additionally they provide for a range of tones audibility levels strobe power and of strobes to meet the needs of all types of building occupancy F Series devices also feature low power to minimize system demand and low in rush duration to improve system reliability to Read F Series Signal Model Numbers F Series products follow a simple pattern as follows the first series of letters numbers describe the base signal class second set describe the strobe if applicable the third set describes the mounting configuration Please refer to the catalog sheet for each base signal class MTL S17S FW 15 cd strobe 15 75 cd strobe 75 cd strobe 110 cd strobe 15 cd strobe synchronous 15 75 cd strobe synchronous 75 cd strobe synchronous Explosion proof Low current draw Single stroke 120 VAC 6 x 6 horizontal 6 x 9 vertical mount Surface white mount Flush white mount 8 tone multi tone horn 3 tone horn Electronic chime Electronic horn Electronic slow whoop Electron mechanical horn Electron mechanical high dB Mini horn 8 tone in mini horn plastic Tri tone horn Lo profile 25 volt speaker Lo profile 70 volt speaker High output 25 volt speaker hHgh output 70 volt speaker 4 inch Bell 6 inch Bell 8 inch 10 inch Mechanical chime Series Remote Annunciators 8 or 16 Zone LED Display Annunciates Zone Alarms Supervisory and Conditions Surface or Semi Flush Installation 4 Wire Connection to SXL or PXL 2 Remote Annunciators per SXL or PXL ULC Listed FM CSFM Approved Listed Meets NFPA 72 Chapter 4 for Station Remote Station Monitoring as a Slave Communicator for to System 3TM SXL IXL and Fire Alarm Control Panels Four Fully Supervised Input Channels Dual Phone Line Interface and Line Fault Automatic 24 Hour Test Reports in Eight 8 Standard Communication Local Keypad Programmer Annunciator 5230 Remote Programming Up Down Loading 5129 Digital Alarm Communicators System Communicators of alarm and trouble information in and out the protected building is critical to proper fire protection LED Series annunciators provide annunciation through the building in many formats to suit the building and the alarm control The 5128 and 5129 communicators carry system conditions to a central station Zone Annunciator with Test Trouble Red Zone Annunciator with Test Trouble Black Zone Annunciator Red Zone Annunciator Black Information Number Zone Serial Annunciator SXL PXL Zone Serial Annunciator SXL PXL Zone Annuniator Red Zone Annuniator Black Zone Annunciator with Test Trouble Red Zone Annunciator with Test Trouble Black Channel Communicator inside FACP Channel Communicator with for 5129 Series Manual Fire Alarm Boxes Durable Plastic Design Shock and Vibration Resistant Activation Visibly Noticeable Optional Contact Arrangements Options Include Keyswitch or Alarm No Break Rods Necessary Surface or Semi Flush Installation Metal Versions Available FM and CSFM Approved Series Thermal Fire Detectors Fixed Temperatures 135 and Rate of Rise Rate Compensation Fixed Explosion Proof Models Available Weatherproof Models Available ULC Listed
