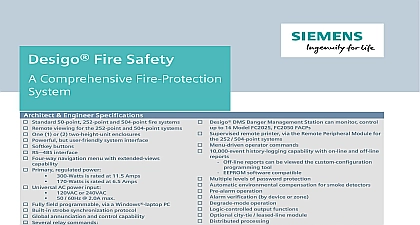

File Preview

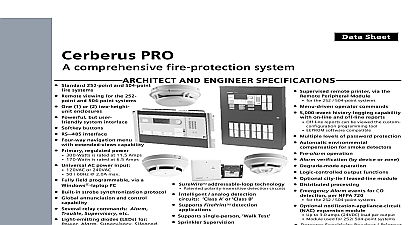

File Preview
Click below to download for free

Text Preview

PRO Comprehensive Fire Protection Architect Engineer Specifications Standard 50 point 252 point and 504 point fire systems Remote viewing for the 252 point and 504 point systems One 1 or 2 two height unit enclosures Powerful but user friendly system interface Softkey buttons RS interface Four way navigation menu with extended views Primary regulated power is rated at 11.5 Amps is rated at 6.5 Amps Universal AC power input or 240VAC 60Hz 2.0A max Fully field programmable via a Windows PC Built in strobe synchronization protocol Global annunciation and control capability Several relay commands Alarm Trouble Supervisory etc Light emitting diodes LEDs for Power Alarm Supervisory Silenced Ground Fault and system status LEDs Alarm command has a larger distinctive LED LED option provides LED annunciation of system activity Backlit liquid crystal display LCD SureWireTM addressable loop technology Patented polarity insensitive detection circuits Intelligent analog detection circuits A or B Supports FirePrintTM detection applications Supports single person Test Sprinkler Supervision End user screens Multiple command stations Supports pre action deluge and Sinorix releasing 252 504 point systems Releasing valve monitoring 10,000 event history event log Detector Sensitivity Readout Printout per NFPA 72 ISOtechnology device compatibility including PAD 5 NAC power supply Network up to 32 panels using SafeDLink CV Web Cerberus DMS Danger Management Station can monitor up to 16 Model FC922 FC924 FACPs Supervised remote printer via the Remote Peripheral Module the 252 504 point systems Menu driven operator commands 10,000 event history logging capability with on line and reports Off line reports can be viewed the custom configuration tool EEPROM software compatible Multiple levels of password protection Automatic environmental compensation for smoke detectors Pre alarm operation Alarm verification by device or zone Degrade mode operation Logic controlled output functions Optional city tie leased line module Distributed processing Gas Alarm events for CO detection per NFPA 720 for the 252 systems Optional notification appliance circuit NAC expansion module Up to 3.0 amps 24VDC load per output Module used for 252 504 point systems NEC 760 power limited circuits UL 864 compliant UL 864 10th Edition Listed ULC S527 Listed FM 3010 CSFM 7165 0067 0259 and FDNY 6104 Supports built in TCP IP Connectivity Cerberus PRO System Overview PRO a comprehensive fire system from Siemens Safety is a technologically fire and life safety Each Cerberus PRO system easy operation via its push soft keys a backlit LCD and a 4 four way push button all located the upper portion of each panel the use of its unique design with its ability to utilize detection devices PRO epitomizes a flexible highly configurable fire system Infrastructure Building Products usa siemens com fire Data Sheet 9800 Cerberus PRO Fire Alarm Panel Cerberus PRO System Overview cont addressable loop technology is supported by PRO PRO is ideally suited for small and mid market by providing 50 252 and 504 point fire alarm control panel FACP The 252 and systems are networkable conjunction with these new improved FACPs is a state line of intelligent detectors For example the Fire CO Detector with ASAtechnologyTM is technology for specialized applications such carbon monoxide detection compared to standardized Photoelectric Smoke Detector uses microcontroller and peak ISOtechnology includes a full line of addressable with optional built in short circuit isolation Cerberus PRO 252 504 Point Fire System Cerberus PRO Model FC922 252 point and FC924 addressable FACP is designed to meet the fire needs of mid size buildings advanced panel offers features typically required in buildings in a package that is easy to install and priced Models FC922 and FC924 are networkable the systems to fulfill the growing fire protection of the building FC922 and FC924 utilize a two height unit components comprise a two height unit enclosure Model FC922 The Operating unit board supplies enclosures 252 504 point System Components Interface Unit Operating Interface Unit Model FCM2018 U3 or FCM2019 U3 functions as the operator interfaces central microprocessors for the Fire Terminal Model and Cerberus PRO FACPs Models FC922 and Model 252 504 point System Components cont Interface Unit cont FCM2018 U3 or Model FCM2019 U3 provides multi capability for each end user to efficiently to quickly control the notification appliance circuits of the corresponding FACP and to permit a manual of the respective system Detailed information about nature and location of the events are displayed via a 4 3 4 backlit LCD screen FCM2018 U3 or Model FCM2019 U3 contains the program configuration created in The controller in each interface module provides all logic and supervision Operating Unit allows for connection to the Remote Module Model FCA2018 U1 and or the Terminal Displays Models FT2014 U3 R3 FT2015 R3 For applications in Canada that require a Cerberus operating unit with LEDs Model FCM2035 U3 must ordered Boards equipped with periphery boards Models FCI2016 U1 and FCI2017 U1 the key components for operating the Cerberus panels Models FC922 and FC924 Each module and monitors input device identity as well as the signaling line circuits that communicate with detectors and other field devices i e C net periphery board B Style Y or 1 Class A Style Z providing 24VDC nominal at a 3A per circuit of audible visual notification appliances The boards mount directly on the enclosure back of the Model FC922 and Model FC924 Cerberus PRO Models FCI2016 U1 FCI2017 U1 provide two 2 regulated 24VDC 1.5A max that supply to external devices or modules Siemens Smart Infrastructure Building Products
