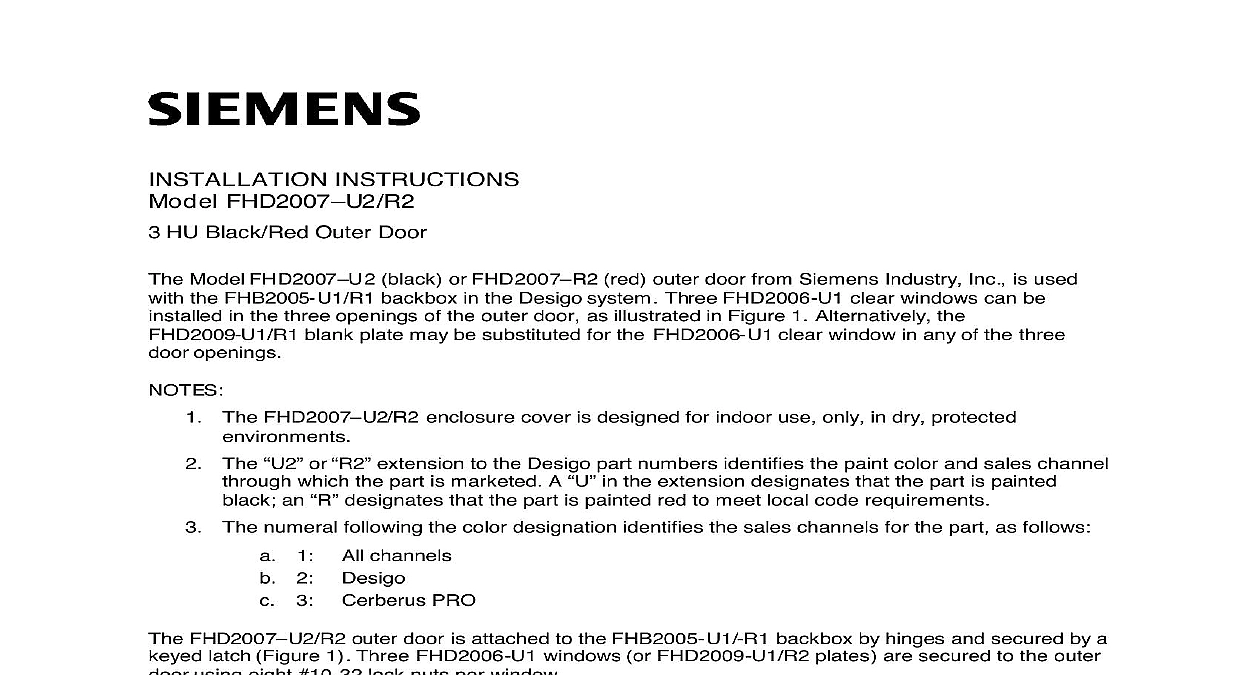

INSTALLATION INSTRUCTIONS FHD2007 HU Black Red Outer Door Model FHD2007 black or FHD2007 red outer door from Siemens Industry Inc is used the FHB2005 U1 R1 backbox in the Desigo system Three FHD2006 U1 clear windows can be in the three openings of the outer door as illustrated in Figure 1 Alternatively the blank plate may be substituted for the FHD2006 U1 clear window in any of the three openings The FHD2007 enclosure cover is designed for indoor use only in dry protected The or extension to the Desigo part numbers identifies the paint color and sales channel which the part is marketed A in the extension designates that the part is painted an designates that the part is painted red to meet local code requirements The numeral following the color designation identifies the sales channels for the part as follows channels 1 2 Desigo 3 Cerberus PRO FHD2007 outer door is attached to the FHB2005 U1 R1 backbox by hinges and secured by a latch Figure 1 Three FHD2006 U1 windows or FHD2009 U1 R2 plates are secured to the outer using eight 10 32 lock nuts per window OPENING 3 FOR MOUNTING WINDOW OR PLATE LATCH 1 Outer Door Industry Inc Technologies Division Park NJ FHD2007 outer door is installed after the FHB2005 U1 R1 backbox is installed and in place and the FHD2004 U1 black or FHD2005 U1 solid black inner door has been on the backbox Referring to Figure 2 hold the FHD2007 outer door adjacent to the FHB2005 U1 R1 in the position shown and lower the upper and lower outer door hinges onto the backbox pins Remove the locking hex nut marked from the stud and insert the loose end of the ground marked over the stud Reinstall the locking hex nut on the stud and tighten firmly to prevent loosing during vibration PLACES PIN PLACES BACKBOX DOOR NUT 2 the FHD2007 U2 R2 Door on the FHB2005 U1 R1 Backbox each window opening install either an FHD2006 U1 clear window or an FHD2009 U1 R2 blank using the eight 10 32 lock nuts provided with the window or blank plate Close the outer door and secure it with the key latch FHD2007 outer door can be used with the FHB2005 U1 R1 backbox only FHD2006 U1 clear window part ID S54400 C46 A1 or the FHD2009 U1 blank plate part ID and S5440 B114 A2 can be used with the FHD2007 U2 outer door The FHD2009 R2 plate can be used with the FHD2007 R3 outer door WITH PART FHD2007 U2 R2 is shipped assembled dimensions W x 0.81 D x 42 L lbs GA 060 1008 or 1010 cold rolled steel phosphating treatement powder coating Black for FHB2007 U2 Red for FHB2005 R2 page has been left intentionally blank Industry Inc Technologies Division Park NJ Canada Limited Technologies Division Kenview Boulevard Ontario L6T 5E4 Canada ID A6V10359790 en a A5Q00054391
