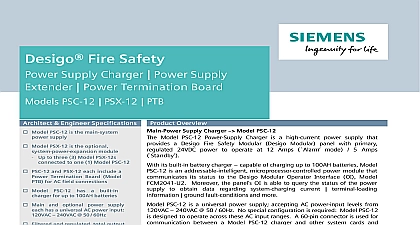

Siemens PSC-12, PTB and PSX-12 Cerberus PRO Modular system-power modules, Data Sheet

PRO Supply Charger Power Supply Power Termination Board PSC 12 PSX 12 PTB Architect Engineer Specifications Model PSC 12 is the main power supply Model PSX 12 is the optional module Up to three 3 Model PSX 12s to one 1 Model PSC 12 PSC 12 and PSX 12 each include a Termination Board Model for AC field connections Model PSC 12 has a built in for up to 100AH batteries Main and optional power supply has a universal AC power input 240VAC 50 60Hz Filtered and regulated total output for each power supply type output 12 Amps 24VDC 24VDC and 6.2VDC power contact panel and to all power via a 60 pin connector Provides 12A non power limited 24VDC output internal use 4 Amp power limited 24VDC external use Common Alarm and Trouble Form C rated 2A Two 2 programmable relays C rated 2A Any of the three 3 modules mount back box or optional Model CAB MP one 1 module space Ground fault detection circuitry for three 3 power equipment types UL864 CAN ULC S576 Listed File S24304 Vol 3 Product Overview Supply Charger Model PSC 12 Model PSC 12 Power Supply Charger is a high current power supply that a Cerberus PRO Modular panel with primary regulated 24VDC power to at 12 Amps Alarm mode 5 Amps Standby its built in battery charger capable of charging up to 100AH batteries Model is an addressable intelligent microprocessor controlled power module that its status to the Cerberus PRO Modular Operator Interface OI FCM2041 U3 Moreover the panel OI is able to query the status of the supply to obtain data regarding system charging current terminal loading ground fault conditions and more PSC 12 is a universal power supply accepting AC power input levels from 240VAC 50 60Hz No special configuration is required Model PSC 12 designed to operate across these AC input ranges A 60 pin connector is used for between a Model PSC 12 charger and other system cards and The communication transmission of which has variables of 6.2VDC and is referred as back plane current Model PSC 12 provides 12 Amps of system output power 24VDC Two 2 power output terminals are available one 1 power limited with 4A max 24VDC capacity as well as one 1 non power limited with 12A max 24VDC the total not to exceed 12A Model PSC 12 also provides two 2 points for the 60 pin power data bus Additionally the 24VDC found a Model PSC 12 provide auto resettable current protection circuits overload and short circuit panel conditions event of a Cerberus PRO Modular system power failure backup batteries are Though when main system power is active Model PSC 12 is able to back up batteries that carry the following current up to 15AH 31AH and up to 100AH batteries The battery sizes that are used in a given PRO Modular panel are entered into the custom configuration software Zeus C and the power charger Model PSC 12 has three 3 modes upon condition Bulk full Charge State Trickle Charge State and maintenance State Model PSC 12 subsequently is able to monitor the of the batteries automatically determining which of the charging to activate Model PSC 12 can only charge lead acid batteries Technologies Division Data Sheet 8322 PSC 12 PRO Modular Supply Charger PSX 12 PRO Modular Supply Extender Product Overview continued Supply Charger Model PSC 12 PSC 12 mounts on one 1 of four 4 available module spaces directly on the back box or optional Model CAB module mounting plate which then mounts inside of Models CAB 1 CAB 2 or CAB 3 system enclosures Model PSC 12 has four 4 Form C relays rated at 2 Amps each A relay is dedicated to automatically on Any System Alarm this is the Common Alarm Relay Another is dedicated to automatically operate on System Trouble this is the Common Trouble Relay Two 2 additional relays are available for programming and based upon system control logic When a door tamper switch is required in any CAB series enclosures the Model tamper switch can be optionally connected to a Model PSC 12 to provide this functionality PSC 12 has diagnostics LEDs to indicate Power On Module Failure internal module failure H NET Failure failure Ground Fault internal to enclosure or on any 24VDC output circuits 24VDC 12A Fail 24VDC 4A Fail Model PSC 12 module is addressed using plain decimal address switches which clearly state the of the module As an option an extender cable Model PSC ISO CBL allows use for two 2 Cerberus PRO power supplies Model PSC 12 in one 1 Model CAB series enclosure Termination Board Model PTB Power Termination Board comes packaged with a module known as Model PTB Model PTB is the Power Termination and is required for operation with the Power Supply Charger Model PSC 12 Model PTB must be mounted in the corner of the CAB enclosures Mounting studs are provided in all enclosures to mount to Model PTB PTB contains screw terminals for the usage of AC input power Model PTB contains an AC line filter and AC line power rated at 5A From another connector on Model PTB AC power is connected directly to Model PSC 12 via a keyed harness Each Model PTB supports building AC power connection circuits for two 2 power supplies either one 1 Model PSC 12 and one 1 optionally for the Power Supply extender Model PSX 12 When more than one 1 Model Power Supply extender is used a second Model PTB is required and must be ordered separately PTB has an optional connector that can be used system installation commissioning and service to the technician with a place to plug in their laptop if required Model AC ADPT is an optional cable that allows connection on one side to PTB via a keyed connector and on the other end into to the laptop s transformer Most PC external transformers have removable AC power cords can be replaced by Model AC ADPT to temporarily an AC power source for PCs used during system service and maintenance calls when needed Technologies Division Ratings for Ordering Product Overview continued Supply Extender Model PSX 12 Power Supply Extender is a high current auxiliary power that expands the main Model PSC 12 power supply and charger for the Cerberus PRO Modular system with an 24VDC power Model PSX 12 is rated at 12 A PSX 12 is an addressable intelligent microprocessor module that communicates its status to the interface OI to report fault conditions FCM2041 U3 is able to query the status of the power to obtain information regarding terminal loading ground fault conditions and more PSX 12 is a universal power supply accepting AC levels from 120VAC 240VAC and has an off switch mode power converter and power factor circuit to improve conductive RF emissions at low No special configuration is required Model PSX 12 works with panel protocol in order to work with other system and modules via the system common 60 pin bus Model PSX 12 provides a full 12 Amps of 24VDC There are two 2 separate power output one of which is power limited with 4A max capacity The other terminal is non power limited 12A max 24VDC capacity total is not to exceed 12A VOLTAGE CURRENT BACK CURRENT TERMINAL CURRENT BACK PLANE
