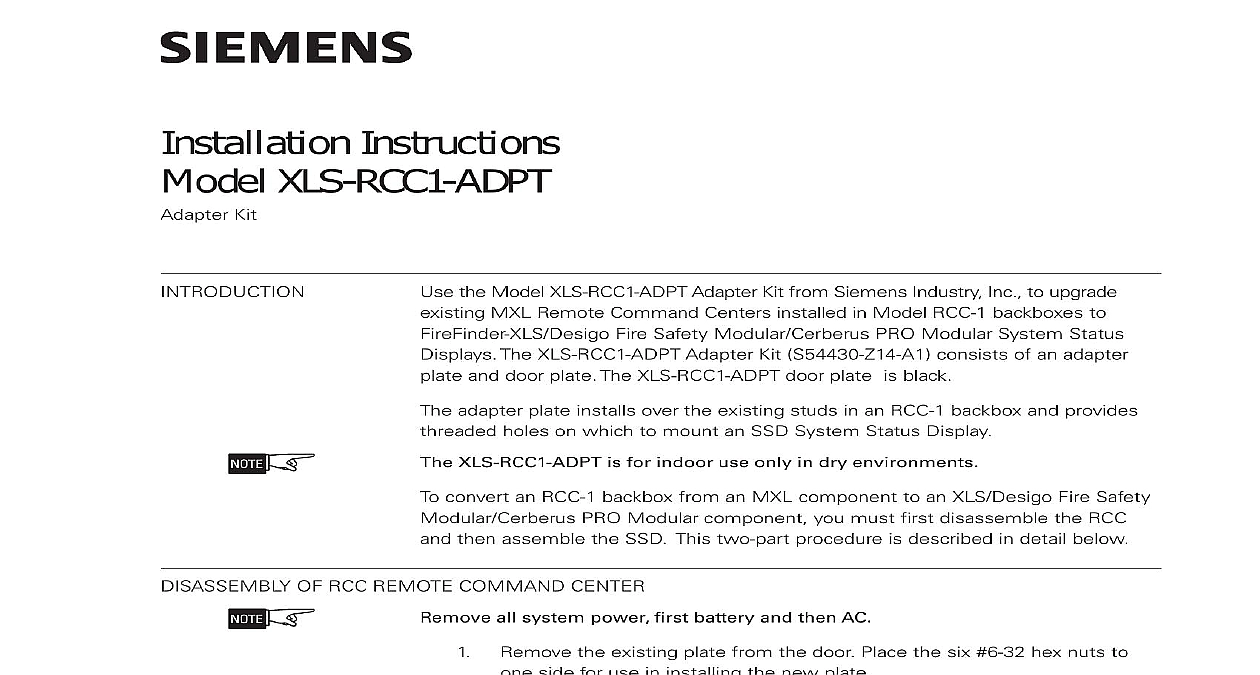

Installation Instructions XLS RCC1 ADPT Kit the Model XLS RCC1 ADPT Adapter Kit from Siemens Industry Inc to upgrade MXL Remote Command Centers installed in Model RCC 1 backboxes to Fire Safety Modular Cerberus PRO Modular System Status The XLS RCC1 ADPT Adapter Kit S54430 Z14 A1 consists of an adapter and door plate The XLS RCC1 ADPT door plate is black adapter plate installs over the existing studs in an RCC 1 backbox and provides holes on which to mount an SSD System Status Display XLS RCC1 ADPT is for indoor use only in dry environments convert an RCC 1 backbox from an MXL component to an XLS Desigo Fire Safety PRO Modular component you must first disassemble the RCC then assemble the SSD This two part procedure is described in detail below OF RCC REMOTE COMMAND CENTER all system power first battery and then AC the existing plate from the door Place the six 6 32 hex nuts to side for use in installing the new plate the standoffs and retain them for later use Disconnect the MKB Keyboard panel and remove it from the standoffs Disconnect and remove all modules from the backbox making sure to mark wires for easier rewiring to the XLS Desigo Fire Safety Modular Cerberus Modular system OF SSD SYSTEM STATUS DISPLAY two parts of the XLS RCC1 ADPT are installed separately The adapter plate is first followed by the door plate Plate XLS RCC1 ADPT adapter plate has holes in it that fit over the studs in an RCC The two larger holes in the bottom of the bracket are for clearance of studs the RCC 1 backbox 1 the XLS RCC1 ADPT over the studs in the RCC 1 backbox Refer to locations marked in Figure 1 the adapter plate in place with the four standoffs removed while the MKB keyboard Inc Inc Inc Industry Inc Inc TTTTTececececechnologies Di Di Di Division Di OF FOR RCC 1 FOR SSD RCC 1 1 the XLS RCC1 ADPT Adapter Plate in an RCC 1 Backbox ADAPTER MUST ALWAYS BE IN THIS POSITION SSD System Status Display can be mounted on the XLS RCC1 ADPT the locations shown in Figure 1 marked the directions in the applicable SSD Installation Instructions listed to mount and wire the SSD in the RCC backbox Use the four 6 32 x Phillips screws provided to mount the SSD to the XLS RCC1 ADPT MODULES AND INSTALLATION INSTRUCTIONS 1 INSTRUCTIONS SSD INTL SSD C INTL 315 034170 315 048733 315 034773 the Door Plate the door plate over the studs on the inside of the door Secure in with the six 6 32 hex nuts that were set to one side when existing on door was removed the outer door and secure with the key latch PLATE BACKBOX 2 Mounted in RCC 1 Backbox Industry Inc Technologies Division security disclaimer products and solutions provide security functions to ensure the secure operation of comfort fire safety security management and physical security systems The security on these products and solutions are important components of a comprehensive security is however necessary to implement and maintain a comprehensive state of the art security that is customized to individual security needs Such a security concept may result in site specific preventive action to ensure that the building comfort fire safety security or physical security system for your site are operated in a secure manner These may include but are not limited to separating networks physically protecting system user awareness programs defense in depth etc additional information on building technology security and our offerings contact your Siemens or project department We strongly recommend customers to follow our security advisories provide information on the latest security threats patches and other mitigation measures http www siemens com cert en cert security advisories htm Industry Inc Technologies Division Industry Inc Technologies Division Park NJ Canada Ltd North Service Road East Ontario 0H6 Canada ID A6V10330016 enUS b
