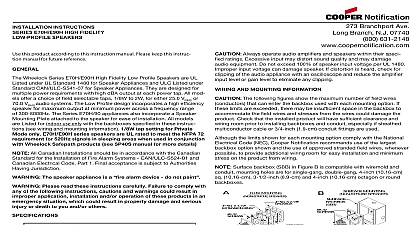

INSTALLATION INSTRUCTIONS HIGH FIDELITY MULTI CANDELA SPEAKER AND SPEAKER this product according to this instruction manual Please keep this instruction manual for future reference Wheelock E50H Series High Fidelity Multi Candela Speaker Strobes are UL Listed under Standard 1971 for Signaling Devices for the Hearing Impaired UL Standard 1480 Speaker Appliances and ULC Listed under Standard CAN ULC S541 07 and CAN ULC S526 07 for indoor Fire Protective Service Speaker strobes with amber blue green red lens are UL Listed under Standard 1638 Visual Signaling Appliance for Private Mode Emergency and General Utility Signaling They are designed for multiple power with high dBA output at each power tap Series E50H High Fidelity Speakers are UL Listed under UL Standard 1480 and ULC Listed under Standard CAN for Speaker Appliances All models offer a choice of field selectable taps 1 8W to 2W for either 25.0 VRMS or 70.0 VRMS audio systems The design incorporates high efficiency speaker for maximum output at minimum power across a frequency range of 300 8000Hz The Speaker Strobes can provide non synchronized strobe opera when connected directly to a Fire Alarm Control Panel FACP or provide synchronized strobe operation when used in conjunction with a Dual Sync Module DSM or Power Supplies All models are Listed for indoor use only with the backboxes specified in these instructions see Mounting Options 1 8W tap setting for Private only E50H 241575W is UL Listed only E50H series speakers are UL rated to meet the NFPA 72 requirement for 520Hz signals in sleeping areas when used conjunction with Wheelock Safepath products see SP40S manual for more details All Canadian Installations should be in accordance with the Canadian Standard for the Installation of Fire Alarm Systems CAN ULC S524 01 and Canadian Electri Code Part 1 Final acceptance is subject to Authorities Having Jurisdiction This appliance is a ALARM DEVICE DO NOT PAINT Please read these instructions carefully Failure to comply with any of the following instructions cautions and warnings could result in improper installation and or operation of these products in an emergency situation which could result in property damage and serious injury or death to you others 1A UL ULC Listed Models and Ratings at 10 Feet Rated Watts dBA CAN ULC S541 07 1B UL ULC Listed Models and Ratings VRMS Voltage Range cd 2 Current Rating for Strobe Only RMS Current AMPS Candela setting will determine the current draw of the product 3 ULC Directional Characteristics 19 degrees horizontal 18 degrees vertical 37 degrees horizontal 39 degrees vertical The maximum wire impedance between strobes shall not exceed 35 OHMS The maximum number of strobes on a single notification appliance circuit shall not 47 Speaker Strobes are not designed to be used on coded systems in which the applied voltage is cycled on and off Make sure that the total RMS current required by all appliances that are connected to the system primary and secondary power sources NAC Circuits DSM Sync or Wheelock Power Supplies do not exceed the power sources rated capacity or the current ratings of any fuses on the circuits to which these appliances are Overloading power sources or exceeding fuse ratings could result in loss of power and failure to alert occupants during an emergency calculating the total currents use Table 2 to determine the highest value of Current for an individual strobe across the expected operating voltage range of strobe then multiply these values by the total number of strobes be sure to add the currents for any other appliances including audible signaling appliances powered the same source and include any required safety factors the peak current exceeds the power supplies peak capacity the output voltage provided by the power supplies may drop below the listed voltage range of the appli connected to the supply and the voltage may not recover in some types of power supplies For example an auxiliary power supply that lacks filtering at its output either via lack of capacitance and or lack of battery backup across the output may exhibit this characteristic INFORMATION connect to screw terminals the appliances 1.5 blocking capacitor for DC supervision of audio lines by the FACP is factory wired in series with the speaker input Supervision voltage must not exceed 33 volts DC E50H Speaker Strobe models have in out wiring terminals that accept two 12 to 18 American Wire Gauge AWG wires at each screw terminal Strip leads 3 8 inches Break all in out wire runs on supervised circuits to assure integrity of circuit supervision as shown in Figure 2 The polarity shown in the wiring diagrams is for operation to Sync Module instruction sheets SM P83123 DSM P83177 or Wheelock Power Supplies for additional information 1575W models are UL Listed at 15cd and meet 75cd on axis Strobes will produce 1 flash per second over the Voltage range All models are Listed for indoor use with a temperature range of 32 to 120 0 to 49 and maximum humidity of 95 RH The effect of shipping and storage shall not adversely affect the performance of the appliance when it is stored in the original cartons and is not subjected to misuse or abuse dBA is rated per UL Standard 1480 and ULC Standard ULC S541 07 for Speaker Appliances Frequency range of speakers is 300 8000Hz These appliances were tested to the operating voltage limits of 16 33 volts using Filtered DC or unfiltered Full Wave Rectified FWR Do not apply 80 and 110 of Check the minimum and maximum output of the power supply and standby battery and subtract the voltage drop from the circuit wiring resistance to determine the Strobes with clear and amber lens meet the required light distribution defined in UL1971 Candela ratings are for clear lens Derate approximately 25 for amber lens 55 for green 75 for blue and 80 for red Model numbers will have a letter after the voltage values for system operation voltage to the strobes to designate lens color A G B or R 1 2 Connect ground wire to backbox Install signaling appliance to backbox using mounting screws provided Check electrical ratings specified in tables 1 and 2 as appropriate to ensure proper electrical input Ensure the speaker wiring is connected to speaker terminals and strobe wiring is connected to strobe terminals only Ensure the wiring at the FACP is correct Wiring method shall be in accordance with CSA C22.1 Canadian Electrical Code Part 1 Safety Standard for Electrical Installations Section 32 Improper electrical input can damage the product or cause it to malfunction 273 Branchport Ave Long Branch N J 07740 800 631 2148 www coopernotification comPN P85324CCopyright 2015 Cooper Wheelock Inc dba Cooper Notificationfirealarmresources com C DE F GH A B C D E F G H 3 Jumper plug is used to 4 Tap Settings Factory setting is dBA loudness 1 2W F Use needle nose pliers to pull and properly insert the jumper plug to the desired tap setting speaker wires to common and positive of terminal block and select the power tap terminal for 1 8W 1 4W 1 2W 1W or 2W 25V or 70V as required see Figures 1 3 4 and Table 4 Each doubling of rated Watts increases sound output by 3 dBA letter corresponds to a plug position of the header located on the printed circuit board Select voltage and wattage as shown in Table 4 below 4 Speaker Voltage and Wattage Connection Chart Graph does not apply to 1575W models PROCEDURES 90
