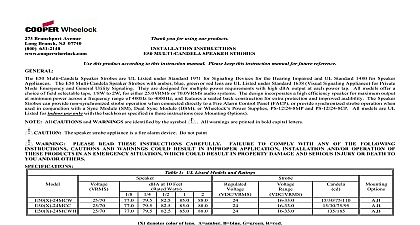

Wheelock E60 speaker install sheet P84719

273 Branchport Avenue Branch NJ 07740 631 2148 SERIES E60 ROUND SPEAKERS AND SPEAKER STROBES Thank you for using our products INSTRUCTIONS this product according to this instruction manual Please keep this instruction manual for future reference E60 Round Speakers and Speaker Strobes are UL Listed under Standard 1971 for Signaling Devices for the Hearing Impaired and UL Standard 1480 for Speaker E60 Speaker Strobes with amber blue green or red lens are UL Listed under Standard 1638 Visual Signaling Appliance for Private Mode Emergency and Utility Signaling They are designed for multiple power requirements with high dBA output at each power tap All models offer a choice of field selectable taps to 2W for either 25.0VRMS or 70.0VRMS audio systems The design incorporates a high efficiency speaker for maximum output at minimum power across a range of 400Hz to 4000Hz and features a sealed back construction for extra protection and improved audibility The Series E60 appliances also incorporate a mounting plate attached to the speaker for ease of installation The Speaker Strobes can provide a non synchronized strobe appliance when connected directly to Fire Alarm Control Panel FACP or provide a synchronized strobe appliance when used in conjunction with a Sync Module SM Dual Sync Module DSM or power supplies The strobes use a xenon flashtube with solid state circuitry enclosed in a polycarbonate lens to provide maximum visibility and reliability for visible signaling The E60 24MCW and E60 24MCWH Speaker Strobes are for wall mounting only The E60 24MCC and E60 24MCCH Speaker Strobes are ceiling mounting only All models are Listed for indoor use only with the back boxes specified in these instructions see Wiring and Mounting Information PLEASE READ THESE INSTRUCTIONS CAREFULLY FAILURE TO COMPLY WITH ANY OF THE FOLLOWING CAUTIONS AND WARNINGS COULD RESULT IN IMPROPER APPLICATION INSTALLATION AND OR OPERATION OF THESE IN AN EMERGENCY SITUATION WHICH COULD RESULT IN PROPERTY DAMAGE AND SERIOUS INJURY OR DEATH TO YOU OTHERS 1 UL Listed Models and Ratings at 10 Feet Watts Candela will produce 1 flash per second over the Voltage range with clear and amber lens meet the required light distribution patterns defined in UL 1971 Candela ratings listed in Table 1 are rated for clear lens Derate approximately 25 for amber 55 for green 70 for blue and 80 for red All models are UL Listed for indoor use with a temperature range of 32 to 120 0 to 49 and maximum humidity of 85 RH The effect of and storage temperatures shall not adversely affect the performance of the appliance when it is stored in the original cartons and is not subjected to or abuse maximum supervision voltage is 33 volts DC range of speakers is 400 4000Hz Always operate audio amplifiers and speakers within their specified ratings Excessive input may distort sound quality and may damage audio Do not exceed 100 of speaker input voltage per UL 1480 Improper input voltage can damage speaker If distortion is heard check for clipping of the appliance with an oscilloscope and reduce the amplifier input level or gain level to eliminate any clipping CANDELA SETTING WILL DETERMINE THE CURRENT DRAW OF THE PRODUCT 2 UL Current Ratings with Strobe Only Maximum RMS Current AMPS Voltage Voltage Maximum RMS Current AMPS These strobes are UL Listed as They are intended to be used with FACPs whose notification circuits are UL Listed as appliances shall not be used on UL Listed Application notification circuits unless the appliances are identified to be compatible in the installation of the FACP or unless the FACP is identified to be compatible in this instruction manual 2007 Cooper Wheelock Inc All rights reserved P84719E 1 of 4 THESE STROBES WERE TESTED TO THE REGULATED VOLTAGE LIMITS OF 16.0 33.0 VOLTS FOR 24V MODELS USING DC OR UNFILTERED FULL WAVE RECTIFIED VOLTAGE DO NOT APPLY VOLTAGE OUTSIDE OF THIS RANGE CHECK THE MINIMUM AND MAXIMUM OUTPUT OF THE POWER SUPPLY AND STANDBY BATTERY AND SUBTRACT THE DROP FROM THE CIRCUIT WIRING RESISTANCE TO DETERMINE THE APPPLIED VOLTAGE TO THE STROBES THE MAXIMUM IMPEDANCE BETWEEN STROBES SHALL NOT EXCEED 35 OHMS Strobes are not designed to be used on coded systems in which the applied voltage is cycled on and off MAKE SURE THAT THE TOTAL RMS CURRENT REQUIRED BY ALL APPLIANCES THAT ARE CONNECTED TO THE SYSTEM AND SECONDARY POWER SOURCES NOTIFICATION APPLICIANCE CIRCUITS SM DSM SYNC MODULES OR WHEELOCK SUPPLIES DOES NOT EXCEED THE POWER SOURCES RATED CAPACITY OR THE CURRENT RATINGS OF ANY FUSES ON THE TO WHICH THESE APPLIANCES ARE WIRED OVERLOADING POWER SOURCES OR EXCEEDING FUSE RATINGS COULD RESULT LOSS OF POWER AND FAILURE TO ALERT OCCUPANTS DURING AN EMERGENCY WHICH COULD RESULT IN PROPERTY DAMAGE AND INJURY OR DEATH TO YOU AND OR OTHERS AND MOUNTING INFORMATION The following figures show the maximum number of field wires conductors that can enter the backbox used with each mounting option If these are exceeded there may be insufficient space in the backbox to accommodate the field wires and stresses from the wires could damage the product Check that the product will have sufficient clearance and wiring room prior to installing backboxes and conduit especially if sheathed multiconductor cable or 3 4 conduit are used the limits shown for each mounting option comply with the National Electrical Code NEC Cooper Wheelock recommends use of the largest backbox option and the use of approved stranded field wires whenever possible to provide additional wiring room for easy installation and minimum stress on the product from MOUNTING SPEAKER MOUNTING SPEAKER SQ X 1 1 2 RING SQ X 2 1 8 SQ X 2 1 8 SQ X 1 1 2 RING SCREWS GRILLE GRILLE NUMBER OF CONDUCTORS 18 AWG 16 AWG 14 AWG 12 8 8 8 NUMBER OF CONDUCTORS 18 AWG 16 AWG 14 AWG 12 8 8 8 1 PRECEDING SPEAKER FIRE ALARM PANEL FACP PRECEDING STROBE OR SYBC MODULE TO NEXT SPEAKER OR END OR LINE RESISTOR EOLR TO NEXT APPLIANCE OR EOLR Figure 2 This model has in out wiring terminals that accept two 12 18 American Wire Gauge AWG wires at each screw Strip leads 3 8 inches and connect to screw Break all in out wire runs on supervised circuits to assure of circuit supervision as shown in Figure 2 The shown in the wiring diagrams is for operation of the Refer to Sync Module instruction sheets SM P83123 DSM P83177 or Power Supplies for additional information STROBE COM Connect ground wire to backbox Install signaling appliance to backbox using mounting screws provided CHECK ELECTRICAL RATINGS SPECIFIED IN TABLES 1 AND 2 AS APPROPRIATE TO ENSURE PROPER INPUT BE SURE SPEAKER WIRING IS CONNECTED TO SPEAKER TERMINALS ONLY AND STROBE WIRING IS CONNECTED TO STROBE TERMINALS CHECK TO
