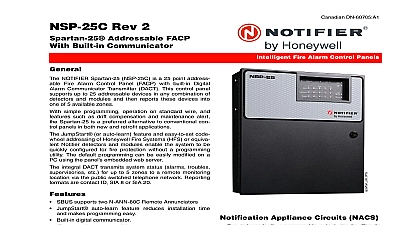

Notifier Spartan-25 (NSP-25C) Addressable FACP With Built-in Communicator

Spartan 25 NSP 25C FACP Built in Communicator NOTIFIER Spartan 25 NSP 25C is a 25 point address Fire Alarm Control Panel FACP with built in Digital Communicator Transmitter DACT This control panel up to 25 addressable devices in any combination of and modules and then reports these devices into of 5 available zones simple programming operation on standard wire and such as drift compensation and maintenance alert Spartan 25 is a preferred alternative to conventional con panels in both new and retrofit applications JumpStart or auto learn feature and easy to set code addressing of Honeywell Fire Systems detectors and enable the system to be quickly configured for fire without a programming utility The default program can be easily modified on a PC using the panel embed web server integral DACT transmits system status alarms troubles etc for up to 5 zones to a remote monitoring via the public switched telephone network Reporting are contact ID SIA 8 or SIA 20 ULC listed and ETL certified to ULC Standard S527 and JumpStart auto learn feature reduces installation time makes programming easy Built in digital communicator Two programmable Style Y Class B notification appliance NACs Selectable strobe synchronization for System Sensor Wheelock or AMSECO devices Two programmable Form C relays and one Form C trouble Drift compensation Alarm verification per zone of detectors Walk test Honeywell Fire Systems detectors and modules are code addressed for faster installation time Maintenance alert region Uses standard wire unshielded or twisted pair Central Station reporting up to five zones On Board Annunciator Custom programming performed control built in browser no programming software is Communication Single addressable DCL loop which meets ULC DCLB 25 addressable device capacity any combination of detectors and modules Compatible with Honeywell Fire Systems detectors and DN 60640 A2 Fire Alarm Control Panels Appliance Circuits NACS Two independently programmable output circuits Circuits be configured for the following outputs Style Y Class B Door Holder Service cannot be used for notification Aux Power Source cannot be used for notification appli Silence Inhibit and Auto silence timer options Continuous or Temporal code Selectable strobe synchronization per NAC Up to 2.0 A total output power 1.0 A for auxiliary power and holder Each circuit can source up to the total system 2.0 A and Software Auto learn feature for easy programming installation time Custom programming can be performed through control built in browser Requires PC with MS Internet or Mozilla Firefox and standard Cat5e Ethernet 5 programmable zones combination of alarm supervisory 12 03 2010 Page 1 of 4 Interface panel has a 3 character 7 segment display for Point ID INDICATORS AC Power green Fire Alarm per zone red Supervisory per zone yellow Trouble Disable per zone yellow Active per NAC green Trouble Disable per NAC yellow Alarm Silenced yellow System Trouble yellow Low Battery Fault yellow System Ground Fault yellow Walk Test yellow CONTROLS Acknowledge Silence Reset Lamp Test Drill Walktest Disable per zone Disable per NAC JumpStart 0 9 numeric keypad Station Duct Smoke Module Module Strobes Horns and NACs 2 of 4 Canadian DN 60640 A2 cid 129 12 03 2010 Line Information 25 point addressable fire alarm control panel main circuit board chassis backbox and door Black VAC Listed for Canadian applications For versions used outside Canada see DN 60609 FIRE SYSTEMS DEVICES Honeywell Fire Systems addressable photoelectric detector Includes base Honeywell Fire Systems addressable photoelectric detector with thermal sensor Includes base Honeywell Fire Systems addressable fixed tempera heat detector Includes base Honeywell Fire Systems addressable Mini Monitor for normally open contact devices Honeywell Fire Systems addressable relay mod Honeywell Fire Systems addressable photoelectric smoke detector Includes detector Addressable dual action manual pull station Surface mount backbox for the NOT BG12LX plastic Optional trim ring for semi flush mounting the pull Battery backbox holds up to two 25 AH batteries and Battery box houses two 55 AH batteries Remote battery charging system for lead acid bat with a rating of 55 to 120 AH Requires additional NFS for mounting Series Batteries See data sheet DN 6933 DACT Phone Cord 2 required Requirements shielded wire is not required it is recommended that all wiring be twisted pair to minimize the effects of electrical Refer to the panel manual for wiring details DN 60640 A2 cid 129 12 03 2010 Page 3 of 4 SPECIFICATIONS Capacity DCL Circuits 1 Addressable device capacity 25 Programmable software zones 5 Specifications AC Power NSP 25C 120 VAC 60 Hz 1.5 A AC wire size minimum 14 AWG 2.00 mm with 600 V insulation Non supervised Battery Charging capacity 7 18 AH NSP 25C cabinet maximum of two 7 AH batteries Larger batteries a separate battery cabinet such as the BB 26 or DCL Circuit Supervised and power limited Notification Appliance Circuits Terminal Strip provides connections for two NACs Style Y B Maximum signaling current 2.0 A End of Line Resistor 4.7 kOhm watt P N 71252 UL for Style Y Class B NAC Refer to the NSP 25C for listed compatible devices Standby Current 135 mA Alarm Current 220 mA Aux Power Circuits 1.0A 24 VDC per circuit power Two Programmable Relays and One Fixed Trouble Contact rating 2.5 A 24 VDC resistive Form C relays nonpower limited nonsupervised Specifications Dimensions 38.42 cm H x 32.39 cm W x 8.57 cm D Weight 5.2 kg Color Black and Humidity Ranges system meets NFPA requirements for operation at 0 and at a relative humidity 93 2 RH noncondens at 32 2 However the useful life of the system s batteries and the electronic components may be affected by extreme temperature ranges and humid Therefore it is recommended that this system and its be installed in an environment with a normal room of 15 27 Listings and Approvals listings and approvals below apply to the basic NSP 25C panel In some cases certain modules may not be by certain approval agencies or listing may be in pro Consult factory for latest listing status ULC Listed S635 DAYRC UOJZC ETL listed Report 3189837NYM 001a For versions used outside Canada see DF 60610 Standards NSP 25C complies with the following NFPA 72 Fire Alarm requirements LOCAL Automatic Manual Waterflow and Sprinkler REMOTE STATION Automatic Manual Waterflow and Supervisory Where a DACT is not accepted alarm trouble and supervisory relays may be con
