Potter 100RU 160ft to 330ft Reflective Beam Smoke Detector

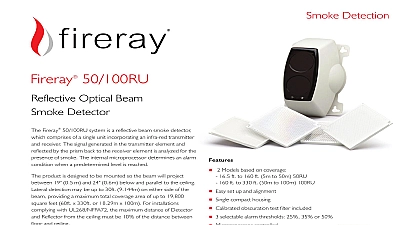

Fireray 50 100RU Optical Beam Detector Fireray 50 100RU system is a reflective beam smoke detector comprises of a single unit incorporating an infra red transmitter receiver The signal generated in the transmitter element and by the prism back to the receiver element is analyzed for the of smoke The internal microprocessor determines an alarm when a predetermined level is reached product is designed to be mounted so the beam will project 19 0.5 m and 24 0.6m below and parallel to the ceiling detection may be up to 30ft 9.144m on either side of the providing a maximum total coverage area of up to 19,800 feet 60ft x 330ft or 18.29m x 100m For installations with UL268 NFPA72 the maximum distance of Detector and ceiling Specification projected beam type smoke detector shall be a 4 wire 12 24 device to be used with a separately supplied 4 wire control The OBSD shall be listed to U L 268 and shall consist of an transmitter and receiver The detector shall operate a range of 16.5 ft to 330 ft 5m to 100m The range of the beam shall be 4 to 131 20 to The beam detector shall feature automatic gain control will compensate for gradual signal deterioration from dirt on the lenses The unit shall be capable of mounting to the wall or to a surface back box Testing shall be carried by using a calibrated obscuration test filter The Reflective beam smoke detector shall be a FFE Ltd or 100RU 160ft 300ft 50m 100m 16.5ft 60ft Models based on coverage 16.5 ft to 160 ft 5m to 50m 50RU 160 ft to 330 ft 50m to 100m 100RU set up and alignment compact housing obscuration test filter included controlled latching or auto reset gain control VDC or 24 VDC operation alarm and trouble contacts Test Station available 50RU 100RU Reflector from the ceiling must be 10 of the distance between selectable alarm thresholds 25 35 or 50 Detection 50 100RU Specification Retardant ABS Rating lbs 0.68 kg H x 4.5 D x 4.75 W H x 114.3mm D x 120mm W Specification Input Power to 30 VDC Current 24VDC Current Contacts Time mA 24 VDC at 30 VDC Resistive Seconds maximum Up Time Seconds Wavelength Threshold 35 50 Rating to 131 20 to 55 UL Listed Installations to 100 0 to 38 Humidity to 93 RH non condensing 16.5 160 ft 5m 50m 160 330 ft 50m 100m S3417 70 02 E S3417 7260 1508 102 70 02 E 2243 Ltd Jamike Ave Ste 200 41018 3147 USA 957 1570 534 1526 known as Fire Fighting Enterprises Ltd 120mm 126mm 100mm 70mm Information beam smoke detector 16.5ft 160ft 50m 0206 02 beam smoke detector 160ft 330ft 100m 0206 03 Test Station 0400 Mount Back Box for 50RU 100RU Beam Detectors Mount Wall Bracket for 50RU 100RU Beam Detectors Test Filter Prism Alignment Bracket Base for 5000 007 and 5000 008 Prism Wall Bracket 4 Prism Alignment Bracket 1 Prism Alignment Bracket Ceiling Pendant Mount Bracket Wire Protective Cage and wiring information are provided for only and are believed to be accurate FFE Ltd no responsibility for their use Data and design are to change without notice Installation and wiring are shipped with the products and should always used for actual installation For more information your Sales Representative Part No 24 0013 04
