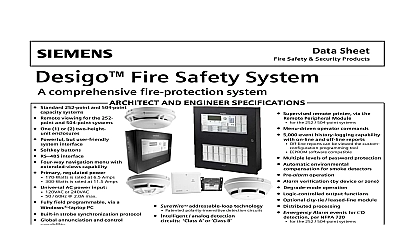

Siemens Desigo Fire Safety - Comprehensive Fire Protection System, Data Sheet

Fire Safety Comprehensive Fire Protection Architect Engineer Specifications Standard 50 point 252 point and 504 point fire systems Remote viewing for the 252 point and 504 point systems One 1 or 2 two height unit enclosures Powerful but user friendly system interface Softkey buttons RS interface Four way navigation menu with extended views Primary regulated power is rated at 11.5 Amps is rated at 6.5 Amps Universal AC power input or 240VAC 60Hz 2.0A max Fully field programmable via a Windows PC Built in strobe synchronization protocol Global annunciation and control capability Several relay commands Trouble Supervisory etc Light emitting diodes LEDs for Alarm Supervisory Silenced Ground Fault and system status LEDs Alarm command has a larger distinctive LED LED option provides LED annunciation of system activity Backlit liquid crystal display LCD SureWireTM addressable loop technology Patented polarity insensitive detection circuits Intelligent analog detection circuits A or B Supports FirePrintTM detection applications Supports single person Test Sprinkler Supervision End user screens Networkable up to 32 panels via SafeDLink FC Net for point systems Multiple command stations Supports pre action deluge and Sinorix releasing 252 504 point systems Releasing valve monitoring Supports multiple global displays Detector Sensitivity Readout Printout per NFPA 72 ISOtechnologyTM device compatibility including PAD 5 NAC power supply Desigo DMS Danger Management Station can monitor control to 16 Model FC2025 FC2050 FACPs Supervised remote printer via the Remote Peripheral Module for 252 504 point systems Menu driven operator commands 10,000 event history logging capability with on line and off line Off line reports can be viewed the custom configuration programming tool EEPROM software compatible Multiple levels of password protection Automatic environmental compensation for smoke detectors Pre alarm operation Alarm verification by device or zone Degrade mode operation Logic controlled output functions Optional city tie leased line module Distributed processing Gas Alarm events for CO detection per NFPA 720 for the 504 point systems Optional notification appliance circuit NAC expansion module Up to 3.0 amps 24VDC load per output Module used for 252 504 point systems NEC 760 power limited circuits UL 864 compliant UL 864 10th Edition Listed ULC S527 Listed FM 3010 CSFM 7165 0067 0259 FDNY 6104 Approved Supports built in TCP IP Connectivity Desigo System Overview Desigo a comprehensive fire system from Siemens Fire is a technologically advanced system Each system provides easy operation its push button soft keys a backlit screen and a 4 four way push button all located in upper portion of each panel the use of its unique design with its ability to utilize detection devices Desigo a flexible and highly fire system SureWireTM technology is by Desigo Infrastructure Building Products usa siemens com fire Data Sheet 6800 Desigo Alarm Panel suited Desigo System Overview cont small and mid market by providing 50 252 and 504 point fire alarm control panel FACP The 252 and systems are networkable conjunction with these new improved FACPs is a state line of intelligent detectors For example the Fire CO Detector with ASAtechnologyTM is technology for specialized applications such carbon monoxide detection compared to standardized Photoelectric Smoke Detector uses microcontroller and peak ISOtechnology includes a full line of addressable with optional built in short circuit isolation Desigo 252 504 Point Fire System Desigo Model FC2025 252 point and FC2050 504 addressable FACP is designed to meet the fire needs of mid size buildings advanced panel offers features typically required in buildings in a package that is easy to install and priced Models FC2025 and FC2050 are networkable the systems to fulfill the growing fire protection of the building FC2025 and FC2050 utilize a two height unit following components comprise a complete two enclosure Model FC2025 Operating Unit Board Supplies Enclosures Model 252 504 point System Components Interface Unit Operating Interface Unit Model FCM2018 U2 or Model functions as the operator interfaces and microprocessors for the Fire Terminal Model and Desigo FACPs Models FC2025 and FC2050 FCM2018 U2 or Model FCM2019 U2 provides multi capability for each end user to efficiently to quickly control the notification appliance circuits of the corresponding FACP and to permit a manual of the respective system Detailed information about nature and location of the events are displayed via a 4 3 4 backlit LCD screen FCM2018 U2 or Model FCM2019 U2 contains the program configuration created The controller in each interface module provides all logic and supervision Operating Unit allows for connection to the Remote Module Model FCA2018 U1 and or the Terminal Displays Models FT2014 U2 R2 FT2015 R2 For applications in Canada that require a Desigo Unit with LEDs Model FCM2035 U2 must be Boards periphery boards Models FCI2016 U1 and FCI2017 U1 the key components for operating the Desigo Models FC2025 and FC2050 Each module and monitors input device identity as well as the signaling line circuits that communicate with detectors and other field devices i e C net periphery board B Style Y or 1 Class A Style Z providing 24VDC nominal at a 3A per circuit of audible visual notification appliances The boards mount directly on the enclosure back of the Model FC2025 and Model FC2050 Desigo Models FCI2016 U1 FCI2017 U1 provide two 2 regulated 24VDC 1.5A max that supply to external devices or modules equipped with Siemens Smart Infrastructure Building P
