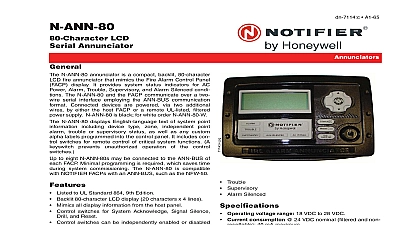

File Preview
File Preview
Click below to download for free

File Data

Name notifier-n-ann-80c-80-character-lcd-fire-alarm-indicator-3291486075.pdf
Type PDF
Size 677.42 KB

Text Preview

N ANN 80C LCD Alarm Indicator N ANN 80C indicator is a compact backlit 80 character fire indicator that mimics the Fire Alarm Control Panel display It provides system status indicators for AC Alarm Trouble Supervisory and Alarm Silenced con The N ANN 80C and the FACP communicate over a serial interface employing the ANN BUS communica format Connected devices are powered via two additional by either the host FACP or a remote ULC listed filtered supply N ANN 80C is black N ANN 80C displays English language text of system information including device type zone independent alarm trouble or supervisory status as well as any cus alpha labels programmed into the control panel It buttons for local silence lamp test and sounder test keyswitch prevents unauthorized operation to eight N ANN 80Cs may be connected to the ANN BUS each FACP Minimal programming is required which saves during system commissioning The N ANN 80C is com with NOTIFIER FACPs with an ANN BUS such as the ULC listed meets all Canadian requirements for a fire indicator Backlit 80 character LCD display 20 characters x 4 lines Buttons for local silence lamp test and sounder test Keyswitch enables disables buttons and mechanically locks enclosure Keyswitch can be enabled or disabled at the FACP Enclosure supervised for tamper System status LEDs for AC Power Alarm Trouble Supervi and Alarm Silence Local sounder can be enabled or disabled at the FACP N ANN 80C connects to the ANN BUS terminal on the and requires minimal panel programming Displays device type identifiers individual point alarm trou supervisory zone and custom alpha labels Time and date display field Surface mount directly to wall or to single double or 4 electrical box Semi flush mount to single double or 4 square electrical Use ANN SB80KIT for angled view mounting Can be remotely located up to 1,800 m from the panel Backlight turns off during AC loss to conserve battery power will turn back on if an alarm condition occurs May be powered by 24 VDC from the host FACP or by power supply requires 24 VDC and Indicators AC Power Alarm Trouble Supervisory Alarm Silenced ALM Silenced DN 60677 A1 Local Silence Lamp Test Sounder Test Operating voltage range 18 VDC to 28 VDC Current consumption 24 VDC nominal filtered and 40 mA maximum Ambient temperature 0 to 49 Relative humidity 93 2 RH noncondensing at 2 13.65 cm high x 17.46 cm wide x 3.49 cm deep For use indoors in a dry location All connections are power limited and supervised Listings and Approvals listings and approvals below apply to the N ANN 80C In cases certain modules may not be listed by certain agencies or listing may be in process Consult fac for latest listing status ULC Listed ANN BUS THE DEVICES ON THE ANN BUS FROM POWER SUPPLY ANN BUS can be powered by an auxiliary power supply the maximum number of ANN BUS devices exceeds the power requirements See the FACP manual for information DEVICE ADDRESSING ANN BUS device requires a unique address ID Num in order to communicate with the FACP A maximum of 8 can be connected to the FACP ANN BUS communica circuit See the FACP manual for more information 4 12 2011 Page 1 of 2 REQUIREMENTS COMMUNICATIONS CIRCUIT N ANN 80C connects to the FACP ANN BUS communica circuit To determine the type of wire and the maximum distance that can be used with FACP ANN BUS acces modules it is necessary to calculate the total worst case draw for all modules on a single 4 conductor bus The worst case current draw is calculated by adding the indi worst case currents for each module For total worst case current draw on a single ANN BUS to appropriate FACP manual calculating the total worst case current draw the follow table specifies the maximum distance the modules can be from the FACP on a single wire run The table ensures volts of line drop maximum In general the wire length is by resistance but for heavier wire gauges capacitance the limiting factor cases are marked in the chart with an asterisk Max length can never be more than 1,800 m regardless of used See table below REQUIREMENTS POWER CIRCUIT 14 to 18 AWG 0.75 2.08 mm2 wire for 24 VDC power cir is acceptable All connections are power limited and supervised A maximum of eight N ANN 80C modules may be con to this circuit Gauge Gauge Gauge Gauge Pair Wiring Distance FACP to Last ANN BUS Module Worst Case Draw amps max 1,800 m m m m m m m m m m m m m m m m m m m m 1,800 m m m m m m m m m m m m m m m m m m m m CONFIGURATION following figure illustrates the wiring between the FACP ANN BUS devices OPTIONS Black 80 character LCD fire alarm indicator Black surface mount backbox with angled White surface mount backbox with angled and power are supervised power limited Device Wiring to ANN BUS Device is a registered trademark of Honeywell International Inc by Honeywell International Inc All rights reserved Unauthorized use this document is strictly prohibited document is not intended to be used for purposes We try to keep our prod information up to date and accurate We cover all specific applications or anticipate requirements All specifications are subject to without notice more information contact Notifier 289 1114 Whitmore Road Ontario L4L 7Z4 2 of 2 Canadian DN 60677 A1 4 12 2011
